Product Details:
Payment & Shipping Terms:
|
| Flow: | 3.75-35m3/h | Head: | 19-40m |
|---|---|---|---|
| Theory: | Centrifugal Pump | Frequency: | 50hz Or 60hz Are All Available |
| Fuel: | Electric Or Diesel |
Product introduction:

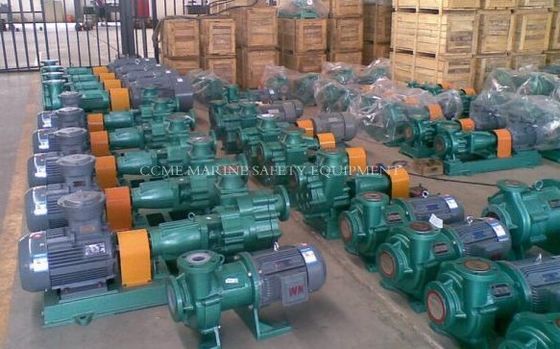

1. API horizontal single stage centrifugal thermal oil pump asphalt heating hot oil pump is suitable for heat-conduction oil, or other hot oils with temperature≤370°C.
2. The oil pump is with single stage end suction centrifugal structure, and sealed with new dynamic high temperature oil seal or high temperature mechanical seal without leakage.
3. The hot oil pump can be equipped with explosion proof motor, gear box motor, also can be equipped with diesel engine.
4. Simple and reasonable structure gets low operating cost, high efficiency, small volume, low noise and excellent performance in thermal system application.
5. It always works as hot oil(thermal oil) system booster pump for boiler, bitumen, resin, spinning and printing, dyeing, plastic and rubber processing, foodstuff industry, etc.
Product details:
| Working Principle: | Centrifugal |
| Main applications: | Hot oil, thermal oil, high temperature oil, etc |
| Driver: | Electric motor, diesel motor. |
| Power Specs: | 220/380/400/415V 3phase;50hz/60hz |
| Max.permissible fluid temperature: | 370°C(698°F) |
| Type of connection: | Flange |
| Installation position: | Horizontal |
| Casing parts material: | Cast steel |
| Shaft seal type: | Mechanical seal, Carbon seal |
| Free passage: | 1mm |
| Maximum viscosity: | 5×104C.S.T |
| Maximum drive rating: | 132KW(180HP) |
| Maximum caliber: | 150mm(6inch) |
| Maximum discharge-side pressure: | 0.85Mpa(8.5bar) |
| Maximum head: | 85m(278.8ft) |
| Flow rate range: | 4.5-400m³/h(19.8-1760US.GPM) |
Performance data:
| Model | Capacity | Head | Speed | Power(KW) | Efficiency | NPSH | Motor | |
| (m3/h) | (m) | (r/min) | Shaft | Motor | (%) | (m) | model | |
| DRY26-20-100 | 4.5 | 15 | 2825 | 0.45 | 0.75 | 40 | 0.8 | Y801-2 |
| DRY50-32-150 | 8 | 22 | 2840 | 1 | 1.5 | 42 | 1.6 | Y90S-2 |
| DRY50-32-160 | 10 | 25 | 2840 | 1.5 | 2.2 | 42 | 1.8 | Y90L-2 |
| DRY65-40-160 | 12.5 | 25 | 2880 | 2.5 | 3 | 45 | 2.2 | Y100L-2 |
| DRY50-50-170 | 12.5 | 32 | 2890 | 3.2 | 4 | 45 | 2.5 | Y112M-2 |
| DRY65-50-180 | 32 | 32 | 2900 | 4.5 | 5.5 | 52 | 2.7 | Y132S1-2 |
| DRY65-50-170 | 40 | 25 | 2900 | 4.5 | 5.5 | 52 | 2.7 | Y13-22S2-2 |
| DRY80-50-180 | 40 | 40 | 2900 | 6.7 | 7.5 | 63 | 3.1 | Y132S2-2 |
| DRY80-50-170 | 60 | 20 | 2900 | 6.7 | 7.5 | 63 | 3.1 | Y160M-2 |
| DRY100-65-190 | 60 | 38 | 2930 | 9.2 | 11 | 68 | 3.9 | Y160M1-2 |
| DRY100-65-200 | 80 | 40 | 2930 | 12.5 | 15 | 70 | 3.5 | Y160M1-2 |
| DRY100-65-220 | 58 | 50 | 2930 | 12.5 | 15 | 68 | 3.5 | Y160M1-2 |
| DRY100-65-230 | 100 | 55 | 2940 | 19.5 | 22 | 70 | 3.6 | Y180M-2 |
| DRY125-100-190 | 155 | 30 | 2940 | 20 | 22 | 72 | 3.6 | Y180M-2 |
| DRY100-65-240 | 100 | 70 | 2950 | 25.5 | 30 | 69.8 | 4.1 | Y200L1-2 |
| DRY100-65-257 | 100 | 80 | 2950 | 32.5 | 37 | 67 | 3.6 | Y200L2-2 |
| DRY125-100-220 | 160 | 45 | 2950 | 25.5 | 37 | 75.2 | 3.6 | Y200L2-2 |
| DRY125-80-250 | 160 | 60 | 2970 | 35.5 | 45 | 74.2 | 5 | Y225M-2 |
| DRY125-100-250 | 200 | 60 | 2970 | 42.8 | 55 | 76.8 | 6 | Y250M-2 |
| DRY125-100-257 | 260 | 70 | 2970 | 64.3 | 75 | 77.1 | 6.8 | Y280S-2 |
| DRY125-100-260 | 300 | 70 | 2970 | 75.3 | 90 | 78.2 | 8 | Y280S1-2 |
| DRY125-100-270 | 220 | 85 | 2970 | 68 | 90 | 76 | 6 | Y280S1-2 |
| DRY150-l25-270 | 340 | 76 | 2970 | 89.5 | 110 | 78.6 | 8.5 | Y315S-2 |
| DRY150-125-270 | 400 | 78 | 2970 | 106 | 132 | 80.6 | 9.8 | Y315M1-2 |
