Product Details:
Payment & Shipping Terms:
|
Theory: | Centrifugal Pump | Structure: | Gear Pump |
---|---|---|---|
Usage: | Air Pump | Power: | Electric |
Standard Or Nonstandard: | Standard | Fuel: | Diesel |
Pressure: | High Pressure | Application: | Maritime |
This series are mainly gear, gear pump shaft, pump body, valve, shaft end seal.Gear after heat treatment with
high hardness and strength, and shaft installed in the replaceable shaft sleeve.In all parts of the lubrication
pump are pump work automatically to achieve using the output media.

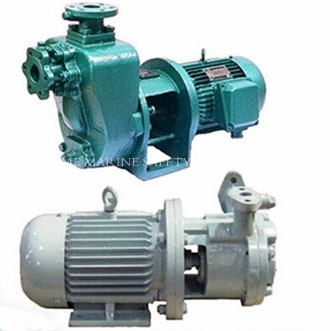

Marine Pump/Bidirectional Gear Pump/Electric Gear Pump | |||||||
Type | Flow(m³/h) | Head(m) | Efficiency(%) | Speed(r/min) | Motor power(KW) | (NPSH)r (m) | Weight(kg) |
CM.4/13.2 | 4.4 | 13.2 | 48 | 2900 | 0.55 | 2.3 | 34 |
CM6.3/20 | 6.3 | 20 | 46 | 2900 | 1.1 | 2.3 | 35 |
CM3.9/17.6 | 3.9 | 17.6 | 40 | 2900 | 0.75 | 2.3 | 31 |
CM6.3/32 | 6.3 | 32 | 40 | 2900 | 2.2 | 2.3 | 50 |
CM4.1/29 | 4.1 | 29 | 34 | 2900 | 1.5 | 2.3 | 45 |
CM3.8/25.5 | 3.8 | 25.5 | 34 | 2900 | 1.1 | 2.3 | 40 |
CM7.6/48 | 7.6 | 48 | 32 | 2900 | 4 | 2.3 | 76 |
CM5.9/44 | 5.9 | 44 | 31 | 2900 | 3 | 2.3 | 64 |
CM6.4/34.5 | 6.4 | 34.5 | 29 | 2900 | 2.2 | 2.3 | 54 |
CM7.6/74 | 7.6 | 74 | 28 | 2900 | 7.5 | 2.3 | 108 |
CM7/65 | 7 | 65 | 27 | 2900 | 5.5 | 2.3 | 100 |
CM5.5/60 | 5.5 | 60 | 27 | 2900 | 4 | 2.3 | 80 |
CM8.8/13.6 | 8.8 | 13.6 | 55 | 2900 | 1.1 | 2.3 | 38 |
CM11/10 | 11 | 10 | 60 | 2900 | 0.75 | 2.3 | 37 |
CM12.5/20 | 12.5 | 20 | 58 | 2900 | 2.2 | 2.3 | 69 |
CM13.2/14 | 13.2 | 14 | 57 | 2900 | 1.5 | 2.3 | 56 |
CM15/30 | 15 | 30 | 56 | 2900 | 3 | 2.3 | 87 |
CM14/26 | 14 | 26 | 53 | 2900 | 2.2 | 2.3 | 77 |
CM10.4/22 | 10.4 | 22 | 50 | 2900 | 1.5 | 2.3 | 65 |
CM15/48 | 15 | 48 | 51 | 2900 | 5.5 | 2.3 | 127 |
CM14/42 | 14 | 42 | 49 | 2900 | 4 | 2.3 | 99 |
CM7.3/37 | 7.3 | 37 | 44 | 2900 | 3 | 2.3 | 89 |
CM15/77.5 | 15 | 77.5 | 40 | 2900 | 11 | 2.3 | 223 |
CM312/78 | 312 | 78 | 79 | 1450 | 160 | 5 | 1760 |
CM295/68 | 295 | 68 | 78 | 1450 | 132 | 5 | 1680 |
CM274/58.5 | 274 | 58.5 | 77 | 1450 | 110 | 5 | 158 |
CM450/24 | 450 | 24 | 83 | 1450 | 55 | 5 | 1300 |
CM400/19.5 | 400 | 19.5 | 81 | 1450 | 45 | 5 | 1210 |
CM450/37 | 450 | 37 | 84 | 1450 | 90 | 4.8 | 1990 |
CM670/28 | 670 | 28 | 80 | 1450 | 75 | 4.8 | 1990 |
CM390/28 | 390 | 28 | 78 | 1450 | 55 | 4.8 | 1780 |
CM720/50 | 720 | 50 | 80 | 1450 | 132 | 4.5 | 2390 |
CM840/37 | 840 | 37 | 80 | 1450 | 110 | 4.5 | 2190 |
CM780/32 | 780 | 32 | 78 | 1450 | 90 | 4.5 | 1990 |
CM575/32 | 575 | 32 | 77 | 1450 | 75 | 4.5 | 1990 |
CM900/74 | 900 | 74 | 80 | 1450 | 250 | 4.5 | 3100 |
CM840/64 | 840 | 64 | 79 | 1450 | 200 | 4.5 | 2528 |
CM780/54 | 780 | 54 | 78 | 1450 | 160 | 4.5 | 2455 |
CM720/47 | 720 | 47 | 77 | 1450 | 132 | 4.5 | 2400 |
