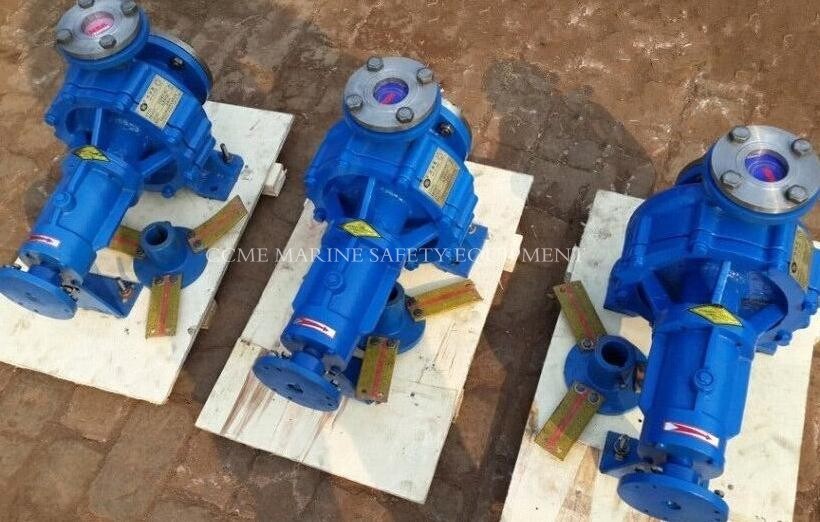

Marine High Temperature Hot Oil Pump

China Marine High Temperature Hot Oil Pump supplier
Marine High Temperature Hot Oil Pump supplier Marine High Temperature Hot Oil Pump supplier Marine High Temperature Hot Oil Pump supplier Marine High Temperature Hot Oil Pump supplier

Large Image :  Marine High Temperature Hot Oil Pump

Product Details:

Place of Origin: Jiangsu
Brand Name: CCME
Certification: ABS EC GL BV KR BV etc
Model Number: CCM5

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: wooden case
Delivery Time: 15 days
Payment Terms: T/T L/C
Supply Ability: 1000 per month
Contact Now
Detailed Product Description

Product Description

1. Summarize
WRY series hot oil pumps are designed on base of advanced oil pumps home and abroad. They have reasonable and compact structure, small size, high efficiency and no oil leakage.

2. Characteristic
Single grade, single suction, cantilever type and foot support are the main sturcture features. The inlet is horizontal and the outlet is vertical. It is installed together with a motor on the base.
2.1 The pump adopts PTEE as the seal. It has good heat adaptablity, seal relibility and no leakage.
2.2 The structure is compact and simple. It requires low maintenance cost and no need cooling equipment.
2.3 Excellent working performance, high efficiency, low energy consumption, low noise, long workin time.


Specification & Parameters

Item. Model Quantity ( m3/h) Head (m) Round (r/min) Power (kw) Efficiency ( %) NPSH (m)
Shaft Power Motor power
1 WRY25-20-120 2 20 2840 0.36 0.55 30 1.2
2 WRY25-20-125 3 20 2840 0.55 0.75 30 1.4
3 WRY50-32-150A 5 25 2840 1.0 1.5 34 1.6
4 WRY50-32-150 8 22 2840 1.1 1.5 43.5 1.8
5 WRY50-32-160 10 25 2840 1.5 2.2 45.2 2.0
6 WRY50-32-170 12.5 32 2900 2.4 3.0 45.7 2.4
7 WRY65-50-170 29 32 2900 3.4 4.0 64.0 2.6
8 WRY65-50-170A 40 25 2900 4.5 5.5 60 2.7
9 WRY65-50-180 20 38 2900 4.0 5.5 52 2.7
10 WRY80-50-170 60 25 2900 6.7 7.5 61 2.9
11 WRY80-50-180 40 40 2900 7.0 7.5 62.1 2.9
12 WRY80-50-190 55 40 2900 9.2 11 65.0 3.0
13 WRY100-65-190 60 38 2900 9.1 11 67.9 3.1
14 WRY80-50-200 50 50 2900 10.8 15 63 3.3
15 WRY100-65-200 80 40 2900 12.4 15 70.7 3.9
16 WRY100-65-220 60 50 2900 12.6 15 65.6 3.0
17 WRY100-65-210 90 45 2900 15.7 18.5 70 3.6
18 WRY100-65-230 100 55 2900 19.5 22 70.7 3.9
19 WRY125-100-170 155 30 2900 17.3 22 75.1 5.5
20 WRY100-65-250 100 70 2900 27.8 30 68.6 4.1
21 WRY100-65-270 100 80 2900 32.4 37 67.2 3.6
22 WRY125-100-220 160 45 2900 25.5 37 75 3.6
23 WRY125-80-240 160 60 2900 35.1 45 74.5 5.5
24 WRY125-100-240 200 60 2900 42.9 55 72.2 6.7
25 WRY125-100-250 250 75 2900 66.5 75 76.8 7.5
26 WRY150-125-260 300 80 2900 83.9 90 77.9 8.3
27 WRY150-125-270A 360 80 2900 96.7 110 81 8.5
28 WRY150-125-270 400 80 2900 110 132 79 9.8
29 WRY200-150-500 500 80 1480 136 160 76 9.5
30 WRY250-200-500 600 80 1480 163 200 80 11
