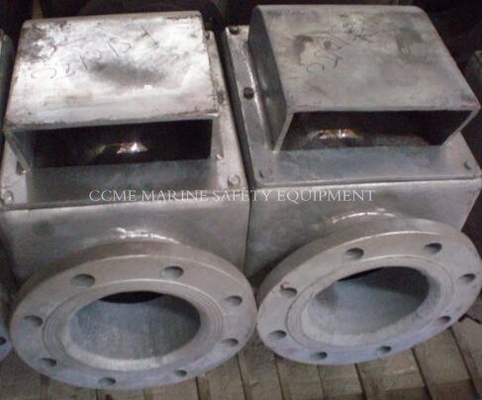

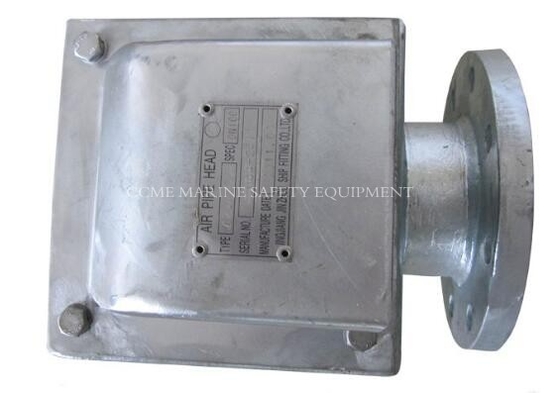

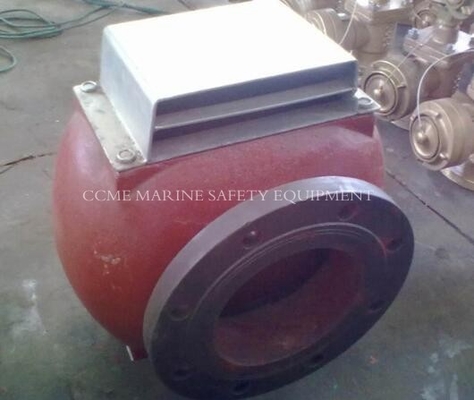

Air Pipe Head Cast Iron Air Vent Heads

DIN Standard Marine Cast Iron Air Pipe Head

JIS cast iron air vent head 250A DN100-400

Standard Materials
body fc200
float sus316
strainer sus400
packing nbr

DN d D C NO. h t H
100 100 200 165 8 19 16 220
125 125 235 200 8 19 16 250
150 150 265 230 8 19 18 285
200 200 320 280 8 23 20 365
250 250 385 345 12 23 22 430
300 300 430 390 12 23 22 530
350 335 480 435 12 25 24 570
400 380 540 495 16 25 24 640
450 430 605 555 16 25 24 713
