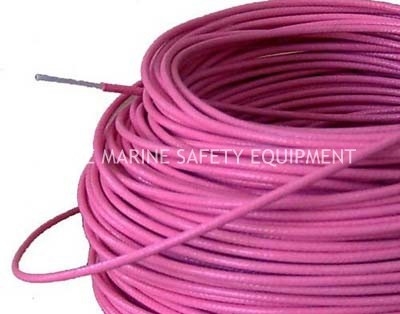

Mairne Telecommunication cable 250V
Product Description:
1. EPR insulated shipboard telecommunication cable
2. EPR insulated shipboard fire-resisting telecommunication cable
3. PVC insulated shipboard telecommunication cable
4. PVC insulated fire-resisting shipboard telecommunication cable
5. XlPE insulated shipboard telecommunication cable
6. XLPE insulated fire-resisting shipboard telecommunication cable
STANDARDS:
IEC 60288 IEC60092-350 IEC60092-353 IEC60092-359
IEC60092 351 IEC60332-1 IEC60332-3Cat.A
IEC61034-2 IEC 60754-2 3A

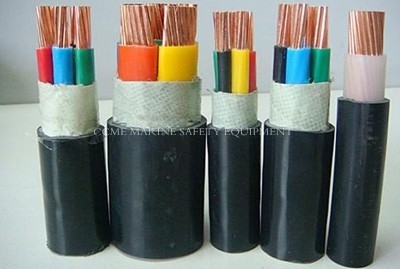

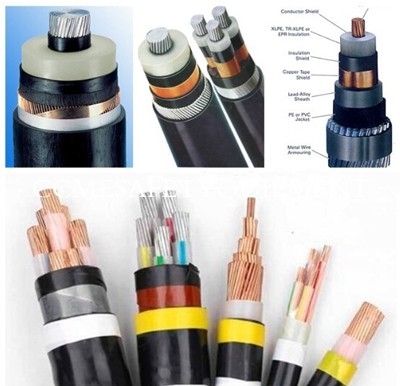

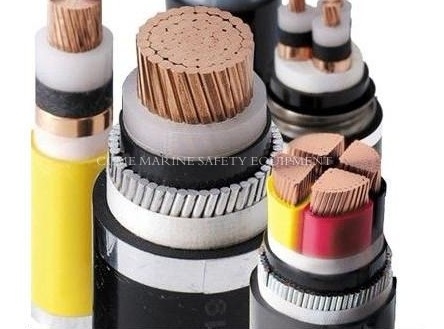

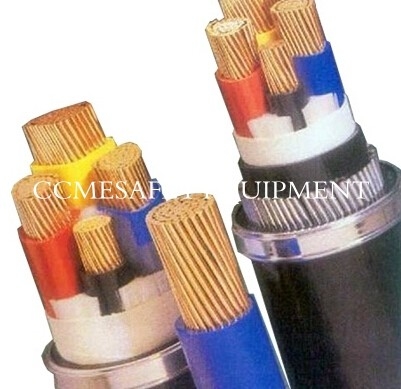

Cable Construction:
Conductor: tinned copper
Insulation: EPR/PVC/XLPE
Filler
Tape
Inner sheath: PCP/CSP/PVC/PO (SHF1, SHF2)
Armored: tinned copper wire braid
(Galvanized steel wire braid)
Outer sheath: PolyvinylChloride/Cross-linked Polyolefin/ Thermoplastic Polyolefin
Application:
The cable is intended for communication, computer and information proceeding unit of shipboard and naval ship, and it is also available to metallurgical industry chemical works, power planted and mines etc.
Certificates:
CCS, LR, ABS, DNV, BV, GL, NK, RINA; 85 degree Celsius
The radius of bend for the installation of cables:
Cable structure features Over diameter of cable(D) Minimum internal bending radius
Metal braided armored Any value 6D
Non-armored D≤25 4D
