| Conductor Material: | Copper Or Tinned Copper | Jacket: | EPR |
|---|---|---|---|
| Insulation: | PVC XLPE PE EPR PUR NBR | Braid: | Metal Wire Braid |
| Sheathed: | PUR Sheathed | Type: | Low Voltage |
| Application: | Marine, Ships,maritime Petrol Platform |

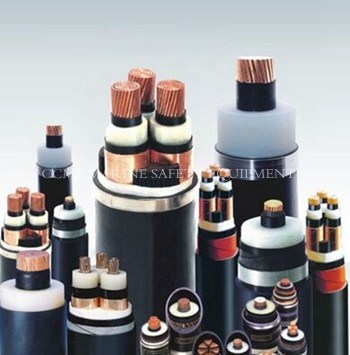

NR/SBR insulated marine power cable spec.
CXF(CF),CXF80(CF32),CXF90(CF31),CXF92,CXV,CXV92,CXFR
Production Standard
JB/T8140.1-1995,IEC
Part of product main technical parameter
|
Core no. x Nominal sectional area (mm2) |
Piece×Nominal diameter of single wire (mm) |
Insulation thickness (mm) |
Sheath thickness (mm) |
Average outer dia. (mm) |
Min insulation resistance at 20°C Ω/km |
|
|
Min. |
Max. |
|||||
|
3*1 |
32/0.20 |
1.0 |
1.1 |
11.0 |
13.0 |
1350 |
|
3*1.5 |
30/0.25 |
1.0 |
1.2 |
11.8 |
14.0 |
1210 |
|
3*2.5 |
49/0.25 |
1.0 |
1.2 |
12.7 |
15.0 |
1031 |
|
3*4 |
56/0.30 |
1.0 |
1.2 |
13.8 |
16.0 |
889 |
|
3*6 |
84/0.30 |
1.0 |
1.3 |
16.6 |
19.5 |
660 |
|
3*10 |
84/0.40 |
1.0 |
1.3 |
19.3 |
22.0 |
523 |
|
3*16 |
126/0.40 |
1.0 |
1.4 |
21.7 |
25.5 |
448 |
|
3*25 |
196/0.40 |
1.2 |
1.6 |
26.6 |
30.0 |
425 |
|
3*35 |
276/0.40 |
1.2 |
1.6 |
30.4 |
33.5 |
356 |
|
3*50 |
396/0.40 |
1.4 |
1.8 |
35.3 |
39.0 |
353 |
|
3*70 |
360/0.50 |
1.6 |
2.0 |
41.3 |
45.5 |
339 |
|
3*95 |
475/0.50 |
1.6 |
2.1 |
45.1 |
48.5 |
305 |
|
3*120 |
608/0.50 |
1.6 |
2.2 |
49.1 |
53.0 |
276 |
|
3*150 |
756/0.50 |
1.8 |
2.4 |
56.7 |
60.5 |
265 |
|
3*185 |
975/0.50 |
2.0 |
2.5 |
60.6 |
64.5 |
276 |
