Product Details:
Payment & Shipping Terms:
|
| Conductor Material: | Copper Or Tinned Copper | Jacket: | EPR |
|---|---|---|---|
| Insulation: | PVC XLPE PE EPR PUR NBR | Braid: | Metal Wire Braid |
| Sheathed: | PUR Sheathed | Type: | Low Voltage |
| Application: | Marine, Ships,maritime Petrol Platform |

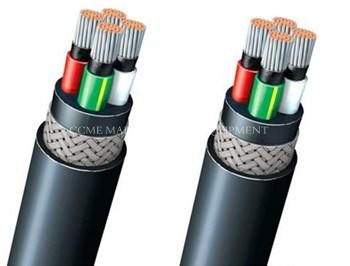

Marine cables construction:
1. Conductor: tinned copper wire,class2 or 5
2. Fire resistant Mica tape on request
3. Insulation: XLPE/EPR/PVC/NR+SBR
4. Filler:Polypropylene/rope/tape(PP)/paper
5. Tape:Non-woven fabric
6. Inner sheath: PVC/PCP/PO(SHF1,SHF2)/CSP
7. shield/Armor: tinned copper wire braided/Galvanized steel wire braided
8. Outer sheath:PVC/PCP/PO(SHF1, SHF2) or no outer sheath
Marine cables Specifications:
Cores: 1,2, 3, 4, 5, 7, 8,10, 12, 14, 16,19, 24, 27, 30, 33, 37
Nominal Cross-section Areas: 1.0mm2, 1.5mm2, 2.5mm2, 4.0mm2, 6.0mm2, 10mm2,16 mm2, 25mm2, 35mm2, 50mm2, 70mm2,95mm2, 120mm2, 150mm2 ,185mm2, 240mm2, 300mm2
Marine cables Flammability features and other constructions:
SA:bunched cable flame retardant
SC:bunched cable flame retardant,halogen free & low smoke
NA:bunched cable flame retardant,fire resistant
NC:bunched cable flame retardant,fire resistant,halogen free & low smoke
R:Flexible conductor with construction
P:Wire or twisted pair with individual shield
|
Conductor |
Nominal |
Nominal |
Overall |
Approx |
Maximum DC resistance |
||||||
|
Nominal |
Number and diameter of wires |
XLPE |
PVC |
XLPE |
PVC |
XLPE |
PVC insulation (mm) |
AL conductor(kg/km) |
AL |
||
|
XLPE |
PVC |
||||||||||
|
3+1 |
3×4+1×2.5 |
1/2.25 |
0.7 |
1.0 |
1.8 |
1.8 |
15.9 |
14.1 |
328 |
191 |
7.41 |
|
1/1.78 |
0.7 |
0.8 |
12.1 |
||||||||
|
3×6+1×4 |
1/2.76 |
0.7 |
1.0 |
1.8 |
1.8 |
17.1 |
15.6 |
380 |
239 |
4.61 |
|
|
1/2.25 |
0.7 |
1.0 |
7.41 |
||||||||
|
3×10+1×6 |
7/1.34 |
0.7 |
1.0 |
1.8 |
1.8 |
18.9 |
18.2 |
465 |
328 |
3.08 |
|
|
1/2.76 |
0.7 |
1.0 |
4.61 |
||||||||
|
3×16+1×10 |
7/1.7 |
0.9 |
1.0 |
1.8 |
1.8 |
21.0 |
20.9 |
573 |
439 |
1.91 |
|
|
7/1.34 |
0.7 |
1.0 |
3.08 |
||||||||
|
3×25+1×16 |
7/2.13 |
0.9 |
1.2 |
1.8 |
1.8 |
25.2 |
24.6 |
782 |
623 |
1.2 |
|
|
7/1.7 |
0.7 |
1.0 |
1.91 |
||||||||
|
3×35+1×16 |
7/2.52 |
0.9 |
1.2 |
1.8 |
1.8 |
25.4 |
26.7 |
1130 |
747 |
0.868 |
|
|
7/1.7 |
0.7 |
1.0 |
1.91 |
||||||||
|
3×50+1×25 |
10/2.52 |
1.0 |
1.4 |
1.8 |
1.9 |
31.1 |
31.1 |
1428 |
967 |
0.641 |
|
|
7/2.13 |
0.9 |
1.2 |
1.2 |
||||||||
|
3×70+1×35 |
14/2.52 |
1.1 |
1.4 |
1.9 |
2.0 |
34.4 |
35.6 |
1760 |
1347 |
0.443 |
|
|
7/2.52 |
0.9 |
1.2 |
0.868 |
||||||||
|
3×95+1×50 |
19/2.52 |
1.1 |
1.6 |
2.1 |
2.2 |
38.8 |
37.8 |
2184 |
1782 |
0.32 |
|
|
10/2.52 |
0.9 |
1.4 |
0.641 |
||||||||
|
3×120+1×70 |
24/2.52 |
1.2 |
1.6 |
2.2 |
2.4 |
42.6 |
39 |
2632 |
2186 |
0.253 |
|
|
14/2.52 |
1.1 |
1.4 |
0.443 |
||||||||
|
3×150+1×70 |
30/2.52 |
1.4 |
1.6 |
2.3 |
2.6 |
46.4 |
41 |
3078 |
2528 |
0.206 |
|
|
14/2.52 |
1.1 |
1.4 |
0.443 |
||||||||
|
3×185+1×95 |
37/2.52 |
1.6 |
2.0 |
2.5 |
2.8 |
51.3 |
42.3 |
3701 |
3140 |
0.164 |
|
|
19/2.52 |
1.1 |
1.6 |
|
||||||||
