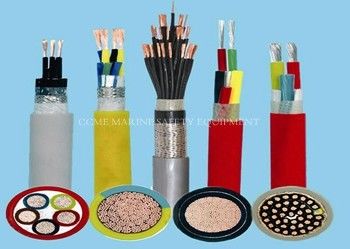

Marine Power Cable XLPE RUBBER Marine Cable Submarine Cables

I. Cable Instruction:

Specification: Copper/Aluminum Conductor PVC/XLPE/EPR Insulated PVC/RUBBER Sheath with steel wire armored submarine power cable

Standard: IEC 60228; IEC60502

Voltage: 450/750V, 0.6/1KV, 1/15KV, 15/22KV, 22/35KV

Conductor: Copper/Aluminum Conductor

Insulation: PVC/XLPE EPR Insulated

Application: The submarine cables that our company manufactured XLPE insulated power cables with rated voltage up to 35kv, submarine optical cables etc. The product is suitable to lay in fixed power supply circuit with rated voltage up to 35kv. We can provide AC or DC submarine power cables with large length when laid in seabed or underwater project.

Package: Wooden Drum Package or Iron-wooden drum

II. Characteritics:

1.Max.permissible continuous operating temperature of conductor(PVC/XLPE):70°C/90°C

2.Max.short-circuit temperature of conductor shall not exceed(5s maximum duration) PVC:160°C XLPE:250°C

3.The ambient temperature under in installation shall not below 0°C

4.The bending radius of single-core shall not less than 20 times of the cable diameter; The bending radius of multi core cable should not less than 15 times of thecable diameter
