Marine Navigation Light Marine Signal Light

China Marine Navigation Light Marine Signal Light supplier
Marine Navigation Light Marine Signal Light supplier Marine Navigation Light Marine Signal Light supplier Marine Navigation Light Marine Signal Light supplier Marine Navigation Light Marine Signal Light supplier

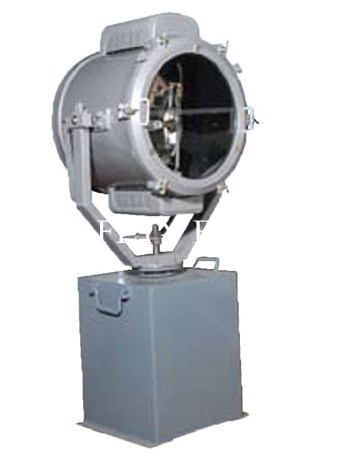

Large Image :  Marine Navigation Light Marine Signal Light

Product Details:

Place of Origin: Jiangsu
Brand Name: CCME
Certification: EC CCS
Model Number: CCM8

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: standard packaging
Delivery Time: 7 days
Payment Terms: T/T
Supply Ability: 10000 per month
Contact Now
Detailed Product Description

Marine Navigation Light / Marine Signal Light


1.Application of Marine Navigation Light / Marine Signal Light
Applied to the ships with the length 50m or above 50m as lamp signal liaison when night navigation.
2.Characteristic of Marine Navigation Light / Marine Signal Light
2.1.           The shell is made of high-strength engineering plastic PA+GF, the lampshade adopts injection of PC, lens hood adopts good quality stainless steel.
2.2.           The signal lights have the whole seal structure, it is waterproof under the bad environment.
2.3.           The connection of the signal light’s lamp holder and the base adopt plug-in type, can replace the up and down bulb as open the cover.
2.4.           The signal lights adopt the signal light’s bulb which conform to the ship norm, and the average life is not lower than 700h.
2.5.           The signal lights can work normally under the temperature -30°C~50°C.
3.Standard of Marine Navigation Light / Marine Signal Light
3.1.           Conform to THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA, 1972 and GRADE ENTRY NORMS FOR STEEL SHIPS.
3.2.           Conform to the international standard IEC60598-1-2008.
3.3.           Conform to the standard of marine electric signal light’s technical condition GB/T3028-1995
4.Specification of Marine Navigation Light / Marine Signal Light




  Name

Type

Visibility

Level arc

Cable Dia.

Lamp Holder

Bulb

Protection Class

Color

Weight

Double-deck starboard light

CXH1-101P

3n.m

112.5°

Φ9

P28S

230V/65W 115V/60W 24V/60W

IP56

Green

4.15KG

Double-deck port light

CXH2-101P

3n.m

112.5°

Red

4.15KG

Double-deck masthead light

CXH3-101P

6n.m

225°

Transparent

4.15KG

Double-deck stern light

CXH4-101P

3n.m

135°

Transparent Yellow

4.17KG

Double-deck all-round light

CXH6-101P

3n.m

360°

Red Green Transparent

4.00K
