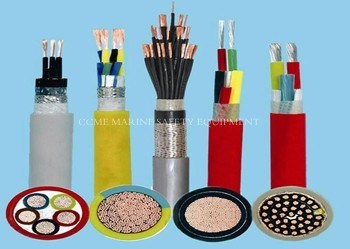

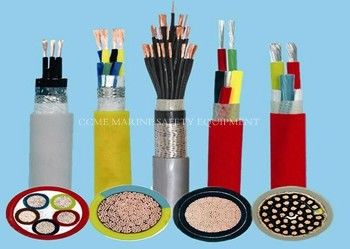

The cable is intended for telecommunication, instrumentation and information proceeding systems of ships, petrol platforms and offshore buildings, and it is also available to metallurgical industry, chemical works, power plant and mine etc.
Conductor: Tinned or plain copper wire
Insulation: XLPE
Individual screen: Al/polyester tape with a tinned; copper drain wire or tinned/plain ; copper wire braid
Inner covering: Tape
Screen/Armor : Tinned or plain copper wire braid
Outersheath: PO
*Product marking
Manufacture’s name, type, spec., rated voltage, length, etc.
**Core identification
White+printed number
Blue +printed number
Red+printed number
|
Number×2(3) |
CME86/SC |
CME86/SC |
CME86/SC |
CME86/SC |
||||||||
|
Calculated |
Calculated |
Calculated |
Calculated |
Calculated |
Calculated |
Calculated |
Calculated |
|||||
|
nom. |
max. |
nom. |
max. |
nom. |
max. |
nom. |
max. |
|||||
|
1×2×0.75 |
7.7 |
8.6 |
81 |
9.3 |
10.5 |
118 |
-- |
-- |
-- |
-- |
-- |
-- |
|
2×2×0.75 |
10.6 |
12.0 |
134 |
12.4 |
14.0 |
187 |
11.2 |
12.5 |
162 |
13.0 |
14.5 |
204 |
|
3×2×0.75 |
11.1 |
12.5 |
159 |
12.9 |
14.5 |
214 |
12.0 |
13.5 |
204 |
13.6 |
15.0 |
243 |
|
4×2×0.75 |
12.2 |
13.5 |
194 |
13.8 |
15.5 |
247 |
13.0 |
14.5 |
246 |
14.8 |
16.0 |
293 |
|
5×2×0.75 |
13.2 |
14.5 |
224 |
15.0 |
16.5 |
287 |
14.7 |
16.0 |
329 |
16.3 |
18.0 |
378 |
|
7×2×0.75 |
14.9 |
16.5 |
315 |
16.7 |
18.5 |
390 |
15.8 |
17.5 |
406 |
17.6 |
19.5 |
465 |
|
8×2×0.75 |
16.5 |
18.0 |
357 |
18.5 |
20.0 |
447 |
17.7 |
19.5 |
469 |
19.5 |
21.0 |
534 |
|
10×2×0.75 |
18.6 |
20.5 |
431 |
20.4 |
22.0 |
521 |
19.8 |
21.5 |
560 |
22.0 |
24.0 |
651 |
|
12×2×0.75 |
19.1 |
21.0 |
477 |
21.3 |
23.0 |
589 |
20.6 |
22.5 |
638 |
22.6 |
24.5 |
722 |
|
14×2×0.75 |
20.2 |
22.0 |
537 |
22.2 |
24.0 |
644 |
21.5 |
23.5 |
713 |
23.5 |
25.5 |
801 |
|
16×2×0.75 |
21.2 |
23.0 |
590 |
23.2 |
25.0 |
702 |
22.6 |
24.5 |
790 |
24.8 |
27.0 |
893 |
|
19×2×0.75 |
22.2 |
24.0 |
662 |
24.4 |
26.5 |
790 |
23.9 |
26.0 |
908 |
26.1 |
28.0 |
1015 |
|
24×2×0.75 |
26.1 |
28.0 |
833 |
28.3 |
30.5 |
981 |
27.8 |
30.0 |
1130 |
30.4 |
32.5 |
1279 |
|
1×3×0.75 |
8.0 |
9.0 |
94 |
9.6 |
11.0 |
132 |
-- |
-- |
-- |
-- |
-- |
-- |
|
2×3×0.75 |
11.8 |
13.0 |
170 |
13.4 |
15.0 |
221 |
12.4 |
14.0 |
199 |
14.0 |
15.5 |
239 |
|
4×3×0.75 |
13.5 |
15.0 |
245 |
15.3 |
17.0 |
310 |
14.9 |
16.5 |
341 |
16.7 |
18.5 |
396 |
|
7×3×0.75 |
16.4 |
18.0 |
403 |
18.4 |
20.0 |
493 |
17.6 |
19.0 |
504 |
19.4 |
21.0 |
569 |
|
10×3×0.75 |
20.8 |
22.5 |
565 |
22.8 |
24.5 |
675 |
22.1 |
24.0 |
697 |
24.3 |
26.0 |
798 |
