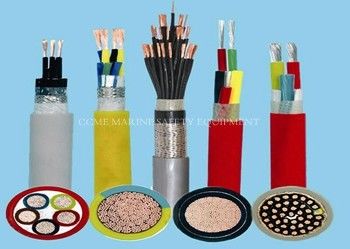

XLPE Insulated Fire-resisting Shipboard Cable 0.6/1kv
SPECIFICATION & STANDARDS
IEC 60288 IEC60092-351 IEC60092-376 IEC60092-359
IEC60332-1 IEC 60331
Construction:
1. Conductor: tinned copper
2. Insulation: EPR
3. Tape
4. Individual screen: tinned copper wire braided
5. Tape
6. Inner sheath: PCP/PO (SHF1, SHF2)
7. Screen/Armored: tinned copper wire braid
(Galvanized steel wire braided)
8. Outer sheath: PVC/PO (SHF1, SHF2)
Flammability Features:
NA: Fire-resisting cable
NC/NSC: Fire-resisting cable halogen-free, low-smoke, low-toxicity.
Specifications:
Cores: 1, 2, 3, 4, 5, 7, 10, 12, 14, 16,19, 24, 27, 30, 33, 37.
Nominal Cross-section Areas: 1 mm2, 1.5mm2, 2.5mm2
Application:
The cable is intended for communication, computer and information proceeding unit of shipboard and naval ship, and it is also available to metallurgical industry chemical works, power planted and mines etc.
Certificates:
CCS,LR,ABS,DNV,BV,GL,NK,RINA; 70
The radius of bend for the installation of cables
Cable structure features |
Over diameter of cable(D) |
Minimum internal bending radius |
Metal braided armored |
Any value |
6D |
Non-armored |
D≤25 |
4D |
D25 |
6D |
