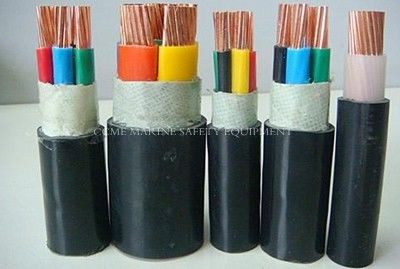

Marine EPR Insulated Fire Resistant Marine Electrical Cables

Marine Electrical Cable

EPR Insulated Fire-resisting Shipboard Electrical Cable 0.6/1 kV

 SPECIFICATION & STANDARDS

IEC 60288 IEC60092-350 IEC60092-353 IEC60092-359

IEC60092 351 IEC60332-1 IEC60332-3Cat.A

IEC61034-2 IEC 60754-2 3A

IEC61034, IEC60754

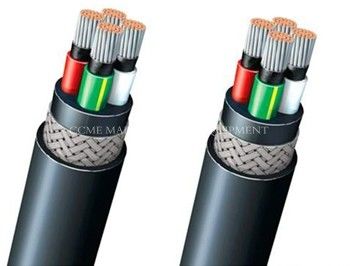

 Construction:

Conductor: tinned copper

Mica

Insulation: EPR

Filler

Tape

Inner sheath: PCP/CSP/PVC/PO

Armored: tinned copper wire braid

        (Galvanized steel wire braid)

Outer sheath: PVC/PO

 Flammability Features:

NA: Fire-resisting cable

NC/NSC: Fire-resisting cable halogen-free, low-smoke, low-toxicity.

 Specifications:

Cores: 1, 2, 3, 4, 5, 7, 10, 12, 14, 16,19, 24, 27, 30, 33, 37.

Nominal Cross-section Areas: 1 mm², 1.5mm², 2.5mm²,  4mm²,  6mm², 10mm²,  16mm², 25mm²,

35mm², 50mm², 70mm², 120mm², 150mm², 185mm², 240mm², 300mm².

 Application:

The cable is intended for power, lighting and control system of shipboard and off-shore building, and it is also available to metallurgical industry chemical works, power planted and mines etc.

 Certificates:

 CCS,LR,ABS,DNV,BV,GL,NK,RINA; 90

 The radius of bend for the installation of cables
