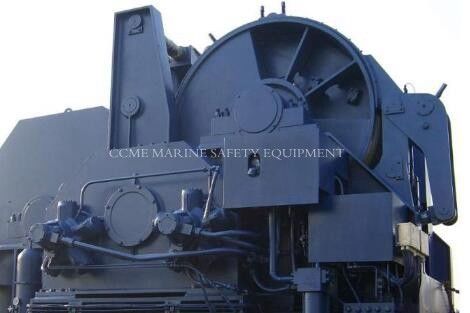

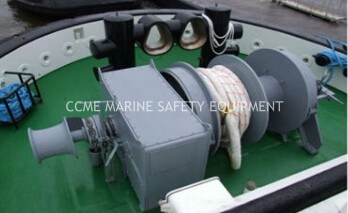

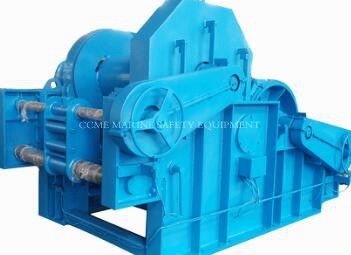

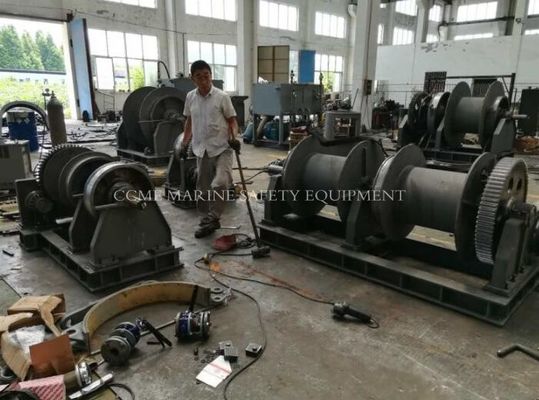

Marine Electric Hydraulic Anchor Windlass

China Marine Electric Hydraulic Anchor Windlass supplier
Marine Electric Hydraulic Anchor Windlass supplier Marine Electric Hydraulic Anchor Windlass supplier Marine Electric Hydraulic Anchor Windlass supplier Marine Electric Hydraulic Anchor Windlass supplier Marine Electric Hydraulic Anchor Windlass supplier

Large Image :  Marine Electric Hydraulic Anchor Windlass

Product Details:

Place of Origin: Jiangsu
Brand Name: CCME
Certification: ABS EC GL CCS BV
Model Number: CCM1

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 15 days
Payment Terms: T/T L/C
Supply Ability: 100 PER month
Detailed Product Description

Specifications:

1) Drive: electric / hydraulic

2) Configuration: single in vertical / horizontal arrangement / double gypsies in horizontal

3) Chain size: 16 mm to 127 mm

4) Chain speed: complying with ISO requirements

5) Clutch: manually operated dog clutch

6) Brake: manually and hydraulic operated band brake

7) Control: local control

8) Paint: as per your specifications







Anchor Windlass (16-44mm Chain)
Model No Chain Sizemm GR2 Gypsies Test Pull(MT) Gypsies Rated Pull(MT) Gypsies Brake Holding (Static MT) Gypsies Centre to Centre mm Double Warping head Size(dia)mm Power (kW) Approx.
CM/GG-12.5 12.5 1 0.7 4.2 600/800 150 3
CM/GG-14 14 1.3 0.9 5.1 600/800 150 3.7
CM/GG-16 16 1.7 1.1 6.9 800/1000 150 4
CM/GG-17.5 17.5 2 1.3 8.2 800/1000 250 5.5
CM/GG-19 19 2.4 1.6 9.7 1000/1200 300 7
CM/GG-20.5 20.5 2.7 1.9 11.2 1000/1200 300 7.5
CM/GG-22 22 3.2 2.1 12.9 1000/1500 300 11
CM/GG-24 24 3.8 2.5 15.3 1000/1500 300 11
CM/GG-26 26 4.4 2.9 17.9 1200/1500 300 11
CM/GG-28 28 5.1 3.4 20.6 1200/1500 330 15
CM/GG-30 30 5.9 3.9 23.6 1200/1500 330 15
CM/GG-32 32 6.6 4.4 26.7 1200/1500 330 18.5
CM/GG-34 34 7.5 5 30.1 1500/2000 380 18.5
CM/GG-36 36 8.4 5.6 33.6 1500/2000 380 22
CM/GG-40 40 10.4 6.9 41.1 1800/2000 380 30
CM/GG-42 42 11.4 7.6 45.1 1800/2000 380 30
CM/GG-44 44 12.8 8.4 49.5 1800/2000 380
