Marine Single Stage Single Suction Chemical Pump

China Marine Single Stage Single Suction Chemical Pump supplier
Marine Single Stage Single Suction Chemical Pump supplier Marine Single Stage Single Suction Chemical Pump supplier Marine Single Stage Single Suction Chemical Pump supplier Marine Single Stage Single Suction Chemical Pump supplier Marine Single Stage Single Suction Chemical Pump supplier

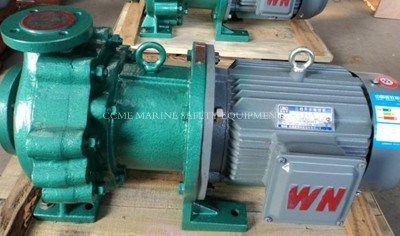

Large Image :  Marine Single Stage Single Suction Chemical Pump

Product Details:

Place of Origin: Jiangsu
Brand Name: CCME
Certification: CCS EC ABS RINA KR GL DNV
Model Number: CCM2

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: standard packaging
Delivery Time: 7 days
Payment Terms: T/T L/C
Supply Ability: 500 per month
Contact Now
Detailed Product Description
Flow: 3.75-500m3/h Head: 19-650m

Self-priming pump FZB all parts of the over-current use of fluorine plastic manufacturing,with self-priming function, FZB the use of human self-priming pump design, outstanding job performance, many have become more and more essential to the use of units of the pump equipment one. Transmission medium temperature of -20 C~ 120 C, flow :8-50m3 / h head :15-45m speed 2900r/min .FZB use a wide range of self-priming pump, the tank will be underground pumping corrosive fluid to the target location, no exports to the bottom of the acid-base acid-base tank pumping to the target location, or for a number of acid cycle between the trough , or for dumping acid, widely used in chemical, pesticides, acid soda, paper, pickling technology, electronics industries



Model Flow Lift Pump Diameter Motor Power Self-priming height Speed
m3/h m mm kw m/min r/min
25FZB-20L 1.5 22 25 25 22 1.5 2900
36 20
6 16
40FZB-20D 5 22 40 50 3 3 2900
8 20
12 28
40FZB-30L 5 32 40 50 4 3 2900
12 30
15 28
50FZB-20D 8 22 50 50 3 3 2900
12 20
15 17
50FZB-30L 8 32 50 40 4 3 2900
12 30
15 28
50F2B-45L 8 47 50 32 7.5 3.5 2900
12 45
15 43
50FZB-70L 8 75 50 32 11 3.5 2900
12.5 70
15 63
65FZB-20L 22 23 65 50 5.5 3.5 2900
25 20
30 18
65FZB-30L 15 32 65 50 7.5 3.5 2900
25 30
35 27
65FZB-45L 15 47 65 40 11 4 2900
25 45
35 38
65FZB-70L 22 73 65 40 18.5 4 2900
25 70
30 65
80FZB-20L 35 23 80 65 5.5 4 2900
40 20
55 18
80FZB-30L 35 32 80 65 11 4 2900
50 30
60 25
80FZB-45L 35 47 80 65 15 4 2900
50 45
60 42
80FZB-70L 45 74 80 50 30 4 2900
50 70
65 65
100FZB-20L 80 23 100 80 11 4 2900
100 20
130 17
100FZB-30L 65 32 100 80 18.5 4 2900
100 45
110 40
100FZB-45L 65 46 100 80 30 4 2900
100 45
110 40
