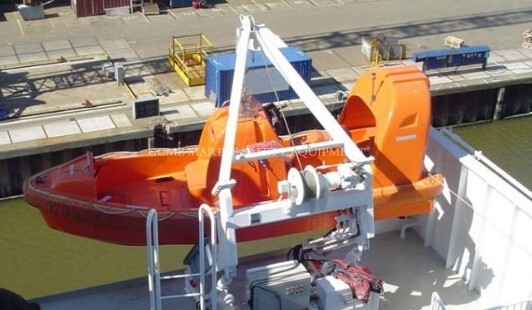

A-frame hydraulic pivoting davit system specially designed for handling rescue boats. This lightweight and very compact davit system is equipped with a self-contained hydraulic power pack unit and electric rescue boat winch.
Davit A-type for fast rescue boats: Hydraulic pivoting A-frame davit suitable for handling fast rescue boats. The davit system is equipped with a self-contained hydraulic power pack unit and an electric rescue boat winch. The system can also be delivered with a hydraulic winch with a constant tension system. (Ro/Ro passenger Ships). A well proven hydraulically operated anti-pendulum system can also be fitted onto the davit head.
Design features:
Suitable for handling fast rescue boats
Equipped with a self-contained hydraulic power pack unit and an electric rescue boat winch
Other sizes dimensions available on request
Basic specification for enquiry:
Required lifting capacity (or lifeboat capacity)
Power pack: hydraulic, electric, or any other
Power source
Required Classification societies
Davit Specifications:
|
Product No. |
S.W.L |
Hoisting Speed |
Main Dimensions(mm) |
||
|
KN |
m/min |
A |
B |
C |
|
|
CYDJ-01 |
20 |
18 |
2175 |
3265 |
2070 |
|
CYDJ-02 |
25 |
18 |
2750 |
4200 |
2100 |
|
CYDJ-03 |
35 |
18 |
3485 |
4760 |
2200 |
|
CYDJ-04 |
20 |
48 |
2175 |
3265 |
2070 |
|
CYDJ-05 |
25 |
48 |
2750 |
4200 |
2100 |
