Marine Anchor Windlass Marine Windlass Marine Winch

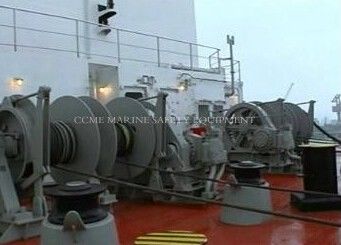

China Marine Anchor Windlass Marine Windlass Marine Winch supplier
Marine Anchor Windlass Marine Windlass Marine Winch supplier Marine Anchor Windlass Marine Windlass Marine Winch supplier Marine Anchor Windlass Marine Windlass Marine Winch supplier Marine Anchor Windlass Marine Windlass Marine Winch supplier

Large Image :  Marine Anchor Windlass Marine Windlass Marine Winch

Product Details:

Place of Origin: Jiangsu
Brand Name: CCME
Certification: ABS EC GL CCS BV
Model Number: CCM6

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 15 days
Payment Terms: T/T L/C
Supply Ability: 100 PER month
Contact Now
Detailed Product Description

Electric hydraulic driven winches are supplied in the range of 24mm U3 chain to 87mm U3 chain. The HST-winches are of modular type,this means various combinations are available.HST- Winches are made of high tensile materials and therefore compact and low weight.

HST-winches are designed in such a way that minimum maintenance is required ,The energy consumption is taken into account with high efficient bearings and effective controls systems.



. Stepless control of winches, locally or remote.

. Effective and safe operation.

. Maximum protection of drive and control parts. no loose piping on the deck.

. Quality components of suppliers with worldwide service network.

. Various potions on dimensions possible.

. Full system operation bulid into the winch.

. Compact design with high levels of reliability and efficiency.

. The electro motor has a stand standstill heating and is overload protected by PTC.

. Certification by all major classification societies possible.

. Very low maintenance. all wear and tear parts are of stainless steel.





OPTIONS AND EXTRAS



. Speed control system for paying in the chain to prevent damage to the hull and anchor pocket

. Automatic speed control system for paying"out" the chain and anchor(automatic anchor drop system)

. Automatic mooring operation by means of self-tensioning

. Low speed option for clutch operation

 . Hydraulic or pneumatic operated clutch

. Hydraulic or pneumatic operated brakes

. Alarm signal to the boards alarm system

. Higher levels of water tightness above IP56

. Load measurement indication

. Chain length measurement system

. Oil cooling system optional

. Finished with full paint system

. Radiographic controls

. Remote controls

. Footswitch operation

Type Nominal pulling force(KN) Overload (KN) Drum load Electric power
MM U2 U3 U2 U3 KN KN
24 24.5 27.36 36.8 41.04 20 4.5
30 38.3 42.75 57.5 64.13 30 6.5
40 68 76 102 114 60 11.5
50 106.3 118.75 159.5 178.13 80 18
60 153 171 229.5 256.5 110 27
70 208.3 232.75 312.5 349.13 160 37
87 321.7 359.53 482.53 539.29 250 56
