Product Details:
Payment & Shipping Terms:
|
| Length: | 0.5m-3m | Thickness: | 6mm-8mm |
|---|---|---|---|
| Standard: | ISO9001,2008 | Usage: | Match With The Dredging Pipe |
1. Good flexibility,excellent impact resistance,particularly suitable for constructions in open sea.
2. Light weight,Molded-in bolt holes allow for easy installation,lower costs for moving.
3. Higher corrosive resistance,longer working life,3 times longer than steel pipe floats.
4. Lower costs,the cost performance is better than steel pipe floats.

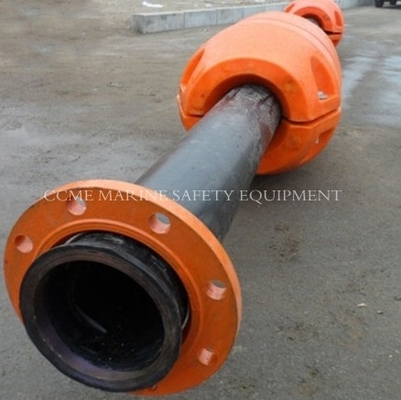

5. 2 pieces of pipe floats form 1 set, 2 sets of pipe floats form 1 pair. 1pair of pipe floats could float 6 meter long dredging pipe or floating pipe and 1.5m long rubber hose.
6. The pipe floats OD under 4m * L4m are all available.
|
Pipe I.D mm |
Pipe thickness mm |
I.D of float mm |
O.D of float mm |
Length of float mm |
Thickness mm |
Net buoyance kg |
Note |
|
350 |
6 |
375 |
1000 |
1000 |
6.5 |
1100 |
Two pieces per unit |
|
414 |
8 |
430 |
1200 |
1200 |
6.5 |
2200 |
Two pieces per unit |
|
450 |
8 |
480 |
1300 |
1300 |
7 |
2300 |
Two pieces per unit |
|
500 |
8 |
530 |
1300 |
1500 |
7 |
2600 |
Two pieces per unit |
|
550 |
10 |
580 |
1400 |
1600 |
8.5 |
3200 |
Two pieces per unit |
|
600 |
10 |
630 |
1450 |
1700 |
9 |
3800 |
Two pieces per unit |
|
650 |
10 |
680 |
1550 |
1800 |
9 |
4020 |
Two pieces per unit |
|
700 |
12 |
730 |
1530 |
1940 |
10 |
4300 |
Two pieces per unit |
|
750 |
12 |
780 |
1700 |
1900 |
10 |
5400 |
Two pieces per unit |
|
800 |
15 |
830 |
1800 |
2000 |
12 |
6100 |
Two pieces per unit |
|
850 |
15 |
880 |
2000 |
2500 |
14 |
9200 |
Two pieces per unit |
|
900 |
15 |
930 |
2100 |
2500 |
14 |
11000 |
Two pieces per unit |
|
900 |
18 |
940 |
2100 |
2500 |
14 |
12000 |
Two pieces per |
