Product Details:
Payment & Shipping Terms:
|
Material: | Steel Or Carbon Steel |
---|

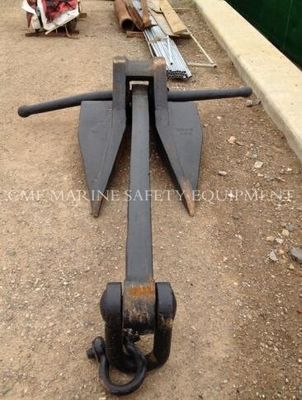

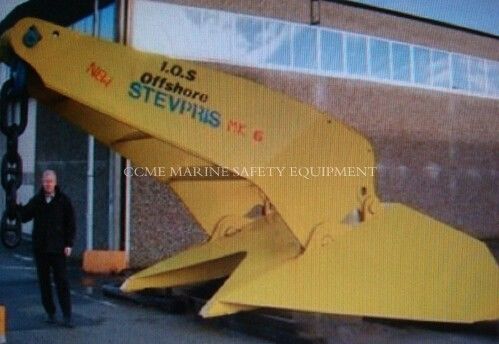

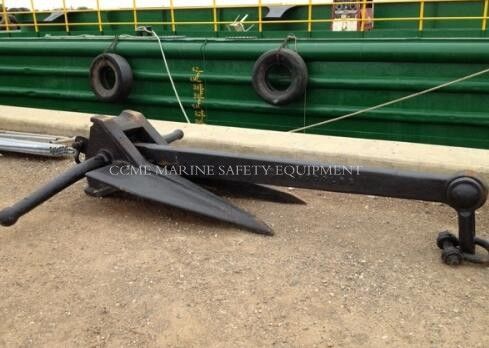

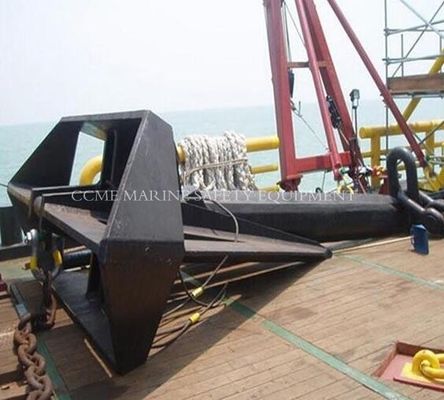

T/TW pool anchor , Spek anchor , delta anchor , AC-14 anchor , admiralty anchor , mushroom anchor and so on
Anchor chain , shackle are also available
all anchors are approved by CCS ,EC/GL, LR , DNV , BV ,ABS , IRS etc
Nominal Weight(KGS) |
Size(mm) | ||||||||
H | h | h1 | L | L1 | B1 | |||
A | B | C | ||||||
570 | 1355 | 1355 | 1042 | 732 | 161 | 1042 | 732 | 481 |
660 | 1422 | 1422 | 1093 | 769 | 169 | 1096 | 769 | 506 |
780 | 1506 | 1506 | 1170 | 820 | 180 | 1170 | 820 | 540 |
900 | 1580 | 1580 | 1215 | 855 | 188 | 1220 | 855 | 560 |
1020 | 1645 | 1645 | 1268 | 885 | 194 | 1260 | 885 | 580 |
1140 | 1705 | 1705 | 1316 | 926 | 2063 | 1319 | 916 | 605 |
1290 | 1778 | 1778 | 1378 | 965 | 211 | 1374 | 965 | 630 |
1440 | 1844 | 1844 | 1448 | 1001 | 219 | 1430 | 1001 | 655 |
1590 | 1906 | 1906 | 1511 | 1035 | 226 | 1475 | 1035 | 677 |
1740 | 1966 | 1966 | 1571 | 1070 | 234 | 1520 | 1070 | 700 |
1920 | 2031 | 2031 | 1602 | 1104 | 241 | 1560 | 1104 | 722 |
2100 | 2093 | 2093 | 1651 | 1120 | 245 | 1560 | 1120 | 732 |
2280 | 2150 | 2150 | 1716 | 1162 | 255 | 1657 | 1165 | 763 |
2460 | 2207 | 2207 | 1785 | 1200 | 263 | 1710 | 1200 | 788 |
2640 | 2259 | 2259 | 1843 | 1222 | 263 | 1730 | 1222 | 796 |
2850 | 2318 | 2318 | 1890 | 1253 | 271 | 1787 | 1253 | 822 |
3060 | 2374 | 2374 | 1970 | 1275 | 280 | 1820 | 1275 | 836 |
