|Material:||Steel Or Carbon Steel|

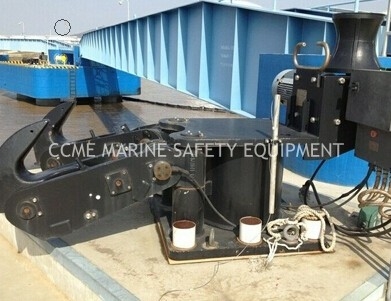

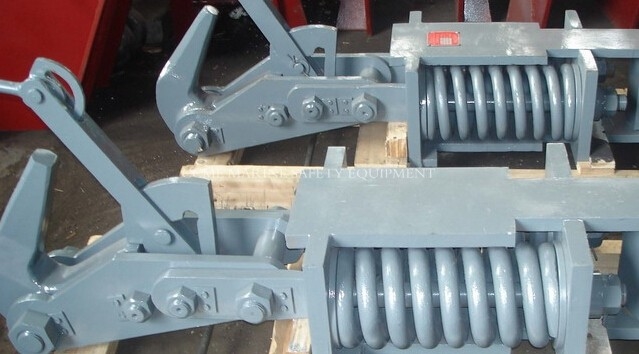

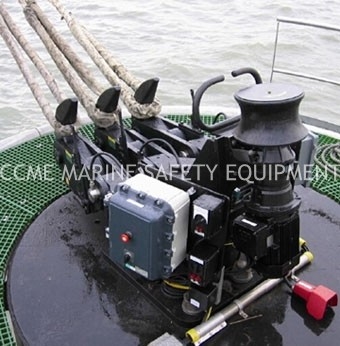

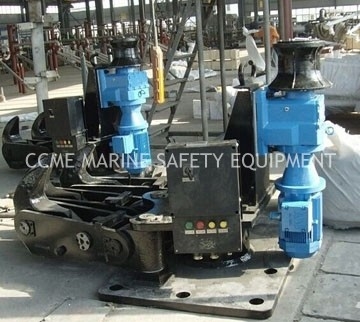

Quick release mooring hooks systems composed by stranded cable structure and release mooring structure, the main functions below:
Reelling the mooring rope automatically. The stranded cable mechine pulls the rope up to the bank automatically. The heavy work used to need two or three people could be finished easily by one people.
Tying up safety and reliability. Under the situation of tying up working, the mechine is in the self-locking state, external force could not pull out the rope from cable hook, safety and reliability of anchoring.
Casting loose quickly. During casting loose, operators turn the control handle to open the locked structure and the anchoring rope will release from hook and cast loose quickly. If emergency such as fire happens on the port or ship, the operator could use the ship leave the parking quickly, so as to guarantee the port or ship safety, avoiding the further extending of loss.
Our company has years' experience on designing and Manufactuer ing of port operating devices, pursuing professional Manufactuer e of quick release mooring hooks systems, and absorbing the advanced technique of abroad, together with the reasonable structure and using the advanced processing technic. Strict management makes the products have reliable quality and safe use. Reccently, we produce single hook, double hook, triple hook, quadruple-hook, etc. among which the double hook and triple hook are the most widely-ranging used.
representing the designed working pressure of each hook is 75T, the number of hook is 2.
representing the designed working pressure of each hook is 75T, the number of hook is 3.
|nature tension of single hook||capstan pull||dynamoelectric capstan speed M/MIN||electromotor power||A||B||C||D||E||F||H||L||N-Φ1|
Main technical function:
1.Range of movement of hook: tangential movement of medial -lateral 90 degree. Vertical elevation in the range is in 5 degree . Elevation 0 degree.
2.Operating force of handle<100N
3.The minimun rope strain of release mooring<100N
4.Electrical machine: explosion-proof grade is Diibt4, three phrase current 380V50Hz or 400V60Hz.
5.Magnetic force starter: explosion-proof grade is Diibt4, defend grade IP55, shout-circuit protection and overload protection
