Marine Offshore And Mooring Flipper Delta Hhp Anchor

China Marine Offshore And Mooring Flipper Delta Hhp Anchor supplier
Marine Offshore And Mooring Flipper Delta Hhp Anchor supplier Marine Offshore And Mooring Flipper Delta Hhp Anchor supplier Marine Offshore And Mooring Flipper Delta Hhp Anchor supplier Marine Offshore And Mooring Flipper Delta Hhp Anchor supplier

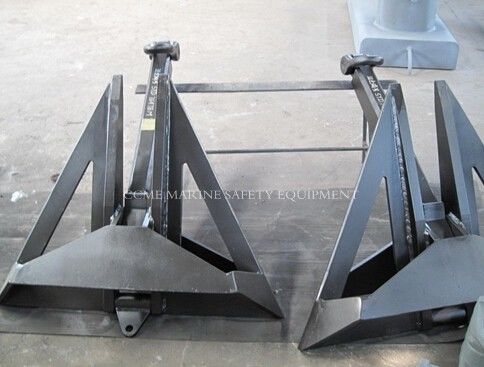

Large Image :  Marine Offshore And Mooring Flipper Delta Hhp Anchor

Product Details:

Place of Origin: Jiangsu
Brand Name: CCME
Certification: ABS, LR, DNV, NK, BV, GL, IRS
Model Number: CCM8

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: standard packaging
Delivery Time: 15 days
Payment Terms: T/T L/C
Supply Ability: 100 PER month
Contact Now
Detailed Product Description
Material: Steel Or Carbon Steel

Specifications

HHP Delta Flipper Anchor Anchor
1) Finish: black painted
2) Material: cast steel
3) supply many kinds of ship anchors

 HHP Delta Flipper Anchor Anchor

1) Type:stevpris anchor

2)Material: cast steel

3)Finish: black painted or

4)Certificates: ABS,LR,BV,NK,DNV,GL,KR,CCS,RINA, ,CS, ISO9001



Nominal Weight (kg) Dimensions (mm)
A B C D E F
300 1200 960 1080 457 1380 Φ45
500 1500 1200 1350 571 1725 Φ50
1000 1875 1500 1686 714 2155 Φ62
1080 1915 1530 1686 722 2200 Φ62
2000 2363 1890 2124 900 2715 Φ74
3000 2700 2160 2430 1028 3105 Φ90
4000 2975 2380 2676 1133 3420 Φ100
5000 3250 2600 2922 1238 3735 Φ110
7000 3575 2860 3216 1360 4110 Φ117
9000 3950 3160 3555 1504 4543 Φ135
10000 4100 3280 3690 1561 4715 Φ140
12000 4490 3575 4030 1695 5320 Φ145
13500 4670 3720 4195 1765 5535 Φ150
15000 4845 3875 4355 1830 5735 Φ150
18000 5140 4080 4610 1940 6080 Φ160
20000 5330 4260 4790 2010 6310 Φ170
22500 5490 4360 4905 2060 6470 Φ180
25000 5740 4590 5106 2165 6795 Φ180
27500 5980 4785 5385 2245 7095 Φ180







3500x6500mm Marine Sling Type Floating Pneumatic Rubber with lightweight.
