| Max. Stowage: | 22m | Max. Assigned: | 600 People |
|---|

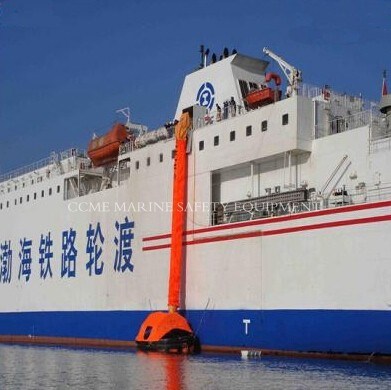

Marine Single Chute Vertical Passage Evacuation System
The Marine Evacuation System is stowed in the stainless steel container on the deck. When releasing the handle, the system will be formed into the sea automatically.
Specification: 10,11,12,13,14,15,16,17,18,19,20,21 and 22 meters
Approval: CCS
|
Model |
Max. Stowage Height(M) |
Max. Assigned (person) |
Platform Capacity (person) |
Weight (kg) |
Dimension of Container(mm) |
|
MES-DVP10 |
10 |
600 |
120 |
1900 |
3300×1500×2200 |
|
MES-DVP11 |
11 |
1920 |
|||
|
MES-DVP12 |
12 |
1940 |
|||
|
MES-DVP13 |
13 |
1960 |
|||
|
MES-DVP14 |
14 |
1980 |
|||
|
MES-DVP15 |
15 |
2000 |
|||
|
MES-DVP16 |
16 |
2020 |
|||
|
MES-DVP17 |
17 |
2040 |
|||
|
MES-DVP18 |
18 |
2060 |
|||
|
MES-DVP19 |
19 |
2080 |
|||
|
MES-DVP20 |
20 |
2100 |
|||
|
MES-DVP21 |
21 |
2120 |
|||
|
MES-DVP22 |
22 |
2140 |
