Marine Oily Water Separators

China Marine  Oily Water Separators supplier
Marine  Oily Water Separators supplier Marine  Oily Water Separators supplier Marine  Oily Water Separators supplier Marine  Oily Water Separators supplier

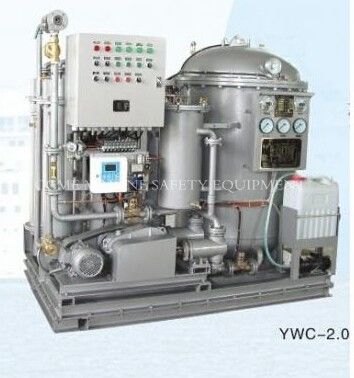

Large Image :  Marine Oily Water Separators

Product Details:

Place of Origin: Jiangsu
Brand Name: CCME
Certification: CCS BV EC ABS
Model Number: CCM4

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 7 days
Payment Terms: T/T L/C
Supply Ability: 100 PER month
Detailed Product Description

Specifications
15ppm bilge separator
CCS,(GL)EC,IMO,USCG certificate
This separator obtained 2 items of Authorized patent, 6 practical

15ppm Bilge Separator for the combination of steam(electrical) heating
EC Approved 15ppm Bilge Oil Water Separators / Diesel Generator Fuel Water Separator
YWC Series 15ppm Bilge Separator (15ppm Bilge Separator) is a kind of environmental protection product designed based on International Maritime Organization IMO MEPC 107(49) standard, the oil content in effluent water ≤15ppm. This separator is the high-tech newest product which can effectively dispose all kinds of fluids in bilge water including fuel oil, high-density residual oil and emulsion mixture combined with black ferric oxide and surfactant.
YWC Series 15ppm Bilge Separator (15ppm Bilge Separator) of 9 types with the capacity from 0.25m3/h to 5.00 m3/h, The smallest type is YWC-0.25 which can be installed on ship less than 1000DWT.The biggest type is YWC-5.00 which can be installed on ship more than 300 thousand DWT. This separator can also be used in industrial and petroleum, besides in ship vessels. The effluent oil content from YWC can meet any standards of Environment Bureau in China.
1. The oil content in effluent water ≤ 15ppm.
YWC Series 15ppm Bilge Separator (15ppm Bilge Separator) of 9 types with the capacity from 0.25m3/h to 5.00 m3/h, The smallest type is YWC-0.25 which can be installed on ship less than 1000DWT. The biggest type is YWC-5.00 which can be installed on ship more than 300 thousand DWT. This separator can also be used in industrial and petroleum, besides in ship vessels

2. Main parameters
(1)capacity: From 0.25m3/h to 5m3/h
(2) Oil content in the effluent water ≤ 15 ppm
(3) Meet the standard of IMO MEPC. 107(49)
(4) Heating mode: Steam /electric heating
(5) CCS, EC certificate
(6) Applicable ship: Less than 1000 DWT to above 300 KDWT
(7) there are 9 types with different capacities

3. Types
0.25 m3/h, 0.5m3/h, 1m3/h, 1.5m3/h, 2m3/h, 2.5m3/h, 3m3/h, 4m3/



YWC-0.25

YWC-0.50

YWC-1.00

YWC-1.50

YWC-2.00

YWC-2.50

YWC-3.00

YWC-4.00

YWC-5.00

RATING/MAX CAPACITY (m3)

0.25/0.31

0.5/0.62

1.0/1.25

1.5/1.87

2/2.25

2.5/3.12

3/3.75

4.0/5.0

5/6.25

POWER OF PUMP (kw)

0.75

1.10

1.10

1.10

2.20

2.20

3.00

3.00

3.75

ELECTRIC HEATER POWER (kw)

1

3

option

option

option

-

-

-

-

STEAM HEATER (m2/kw)

-

-

1/30

1/45

2/60

2/75

3/90

4/120

5/150

15ppm BILGE ALARM

included

included

included

included

included

included

included

included

included

BASE(CHANNEL STEEL) (mm)

1000*600

1100*690

1050*1080

1100*1130

1900*1120

1900*1120

1700*1500

2280*1700

2590*2000

HEIGHT (mm)

1320

1460

1500

1660

1700

1900

2020

1820

1900

DRY/WET WEIGHT

300/450

600/800

800/860

1060/1810

1260/2260

1500/2800

1800/3200

2100/3900

2500/4600

APPLICABLE SHIP VESSEL (DWT)

<1000

1000∼5000

5000∼10000

10000∼30000

30000∼50000

50000∼100000

100000∼200000

100000∼300000

>300000

Marine  Oily Water Separators
