Product Details:
Payment & Shipping Terms:
|
Applicable ship :
less than 100 ~200KDW0.25m3/h , 1m3/h , 1.5m3/h , 2m3/h , 3m3/h , 4m3/h , 5m3/h
15ppm bilge separator
CCS,(GL)EC,IMO,USCG certificate
This separator obtained 2 items of Authorized patent, 6 practical
15ppm Bilge Separator for the combination of steam(electrical) heating
EC Approved 15ppm Bilge Oil Water Separators / Diesel Generator Fuel Water Separator

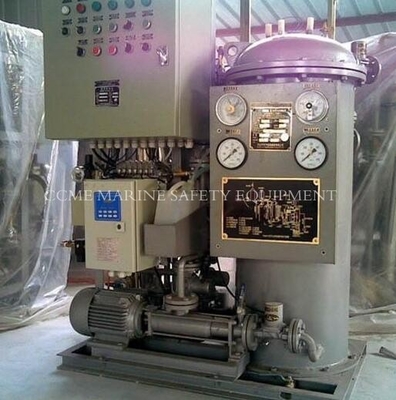

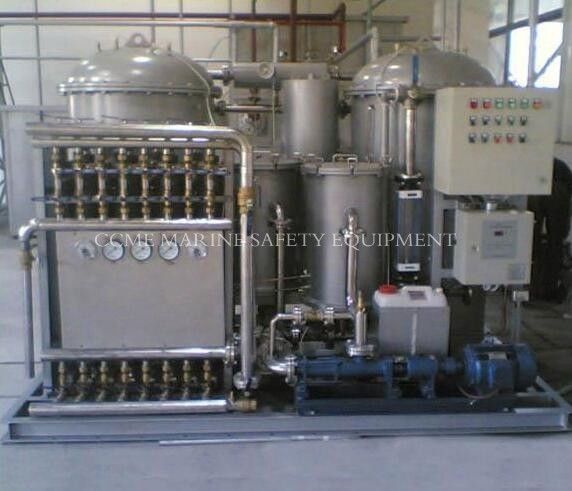

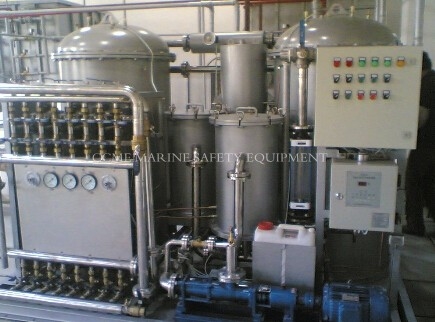

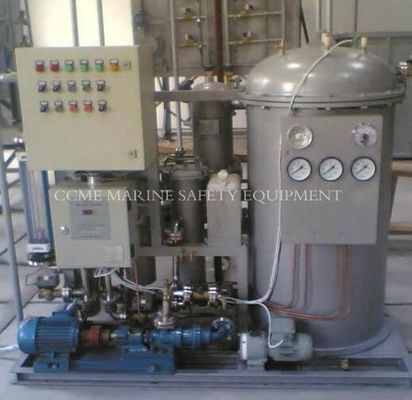

YWC Series 15ppm Bilge Separator (15ppm Bilge Separator) is a kind of environmental protection product designed based on International Maritime Organization IMO MEPC 107(49) standard, the oil content in effluent water ≤15ppm. This separator is the high-tech newest product which can effectively dispose all kinds of fluids in bilge water including fuel oil, high-density residual oil and emulsion mixture combined with black ferric oxide and surfactant.
YWC Series 15ppm Bilge Separator (15ppm Bilge Separator) of 9 types with the capacity from 0.25m3/h to 5.00 m3/h, The smallest type is YWC-0.25 which can be installed on ship less than 1000DWT.The biggest type is YWC-5.00 which can be installed on ship more than 300 thousand DWT. This separator can also be used in industrial and petroleum, besides in ship vessels. The effluent oil content from YWC can meet any standards of Environment Bureau in China.
1. The oil content in effluent water ≤ 15ppm.
YWC Series 15ppm Bilge Separator (15ppm Bilge Separator) of 9 types with the capacity from 0.25m3/h to 5.00 m3/h, The smallest type is YWC-0.25 which can be installed on ship less than 1000DWT. The biggest type is YWC-5.00 which can be installed on ship more than 300 thousand DWT. This separator can also be used in industrial and petroleum, besides in ship vessels
2. Main parameters
(1)capacity: From 0.25m3/h to 5m3/h
(2) Oil content in the effluent water ≤ 15 ppm
(3) Meet the standard of IMO MEPC. 107(49)
(4) Heating mode: Steam /electric heating
(5) CCS, EC certificate
(6) Applicable ship: Less than 1000 DWT to above 300 KDWT
(7) there are 9 types with different capacities
3. Types
0.25 m3/h, 0.5m3/h, 1m3/h, 1.5m3/h, 2m3/h, 2.5m3/h, 3m3/h, 4m3/
YWC-0.25 | YWC-0.50 | YWC-1.00 | YWC-1.50 | YWC-2.00 | YWC-2.50 | YWC-3.00 | YWC-4.00 | YWC-5.00 | |
RATING/MAX CAPACITY (m3) | 0.25/0.31 | 0.5/0.62 | 1.0/1.25 | 1.5/1.87 | 2/2.25 | 2.5/3.12 | 3/3.75 | 4.0/5.0 | 5/6.25 |
POWER OF PUMP (kw) | 0.75 | 1.10 | 1.10 | 1.10 | 2.20 | 2.20 | 3.00 | 3.00 | 3.75 |
ELECTRIC HEATER POWER (kw) | 1 | 3 | option | option | option | - | - | - | - |
STEAM HEATER (m2/kw) | - | - | 1/30 | 1/45 | 2/60 | 2/75 | 3/90 | 4/120 | 5/150 |
15ppm BILGE ALARM | included | included | included | included | included | included | included | included | included |
BASE(CHANNEL STEEL) (mm) | 1000*600 | 1100*690 | 1050*1080 | 1100*1130 | 1900*1120 | 1900*1120 | 1700*1500 | 2280*1700 | 2590*2000 |
HEIGHT (mm) | 1320 | 1460 | 1500 | 1660 | 1700 | 1900 | 2020 | 1820 | 1900 |
DRY/WET WEIGHT | 300/450 | 600/800 | 800/860 | 1060/1810 | 1260/2260 | 1500/2800 | 1800/3200 | 2100/3900 | 2500/4600 |
APPLICABLE SHIP VESSEL (DWT) | <1000 | 1000∼5000 | 5000∼10000 | 10000∼30000 | 30000∼50000 | 50000∼100000 | 100000∼200000 | 100000∼300000 | >300000 |
