Product Details:
Payment & Shipping Terms:
|
1,International after-sale service,
2,Cu1,Cu2,Cu3,CU4.
3,Maximum efficiency with minimum noise and vibration levels.
4,CPP,FP
Model |
Type of Hub |
Hub dia.(mm) |
Propeller dia.(mm) |
Max output(kw) |
MCP38 |
A,B |
380 |
1500 |
850 |
MCP45 |
A,B |
450 |
1800 |
930 |
MCP53 |
A,B |
530 |
2150 |
1300 |
MCP57 |
B,C |
570 |
2280 |
2500 |
MCP63 |
B,C |
630 |
2520 |
3000 |
MCP72 |
B,C |
720 |
2900 |
5000 |
MCP79 |
B,C |
790 |
3150 |
6000 |
MCP85 |
B,C |
850 |
3400 |
8000 |
MCP92 |
B,C |
920 |
4200 |
11000 |
MCP105 |
C |
1050 |
4500 |
>15000 |
MCP110 |
C |
1100 |
4850 |
>15000 |
MCP121 |
C |
1210 |
4850 |
>15000 |
MCP135 |
C |
1350 |
5300 |
>15000 |

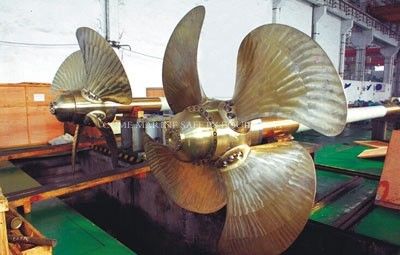

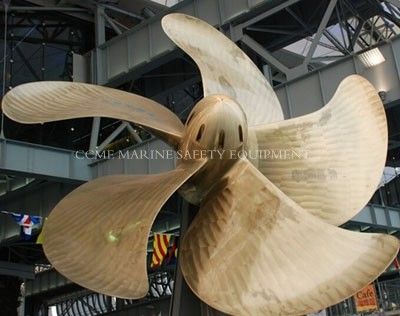

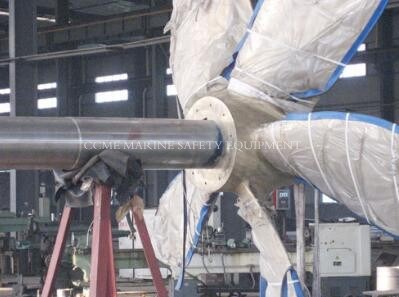

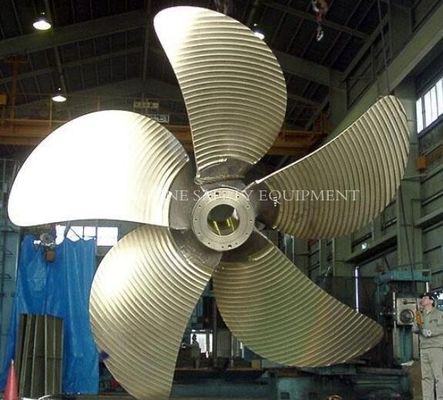

Our Controllable Pitch Propeller diameter up to 5 meters,meterial available Cu1,Cu2,Cu3,Cu4.
Our products has been approved by ABS,BV.CCS,DNV,GL.LR,NK,etc., and abtained the authentication certificate of Quality System ISO9001:2000.
Product Feature
Highest propulsive efficiency in all operating conditions,
Excellent behaviour regarding cavitation,with no erosive types of cavitation
Lowest pressure pulse fluctuations on the hull to minimize noise and vibration levels on board.
Application
Container vessels, tankers, bulk carriers and dry cargo vessels ,Speed boat,yacht,etc.
Other Information
We design and supply all propulsion system for container ships.cargo ships,tankers,bug boats,trawlers and fishing boats etc. Including Main engine,Gearbox,Shaftings,FPP,CPP,Rudder propellers,Tunnel thrusters,Azimuth thrusters,Water jets,also Main propulsion assembly.
Our Controllable Pitch Propeller diameter up to 5 meters,meterial available Cu1,Cu2,Cu3,Cu4.
