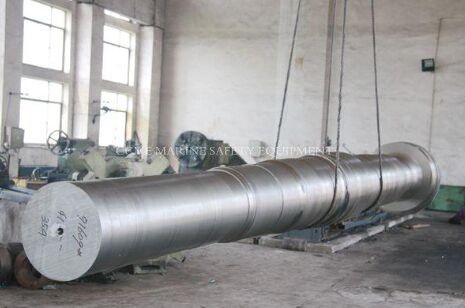

Large Image :  Marine Machining Shaft Marine Roller Shaft Spindle Forging Marine Propeller Shaft

Product Details:

Place of Origin: Jiangsu
Brand Name: CCME
Certification: CCS
Model Number: CCM5

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: standard packaging
Delivery Time: 1 month
Payment Terms: T/T L/C
Supply Ability: 10 PER month
Contact Now
Detailed Product Description

The details of marine propeller shaft as

follows,1.Material:H13,4130,4140,4150,4340,1035,1045,EN9,EN19,EN24,EN31,51200,SUJ2,

100Cr6,K310,34CrNiMo6,36CrNiMo4,



42CrMo4,86CrMoV7, C35E, C40E, C45E, etc.
2.Hardness: HB240-320
3.Ultrasonic Test: Sep 1921-84 - Test Group 3 Class D or ASTM A388 - FBH max 4mm
4.Forging reduction ratio: ≥4
5.Manufacturing process: steel ingot→forging→rough machining→QT→2th rough machining→finishing machining→packing→delivery
6.Quality required: Surface defect and decarburization shall be free. All dimensions are 100% OK.
7.Packing: wooden box or metal pallet for protection against rust and damage.

8.Quality Management Certification: ISO 9001:2008.



Product Name

Specification

Main Materials

marine propeller shaft

Dia.80~ Dia.1500mm

Length≤12000mm

H13,4130,4140,4150,4340,

EN9,EN19,EN24,EN31,etc



If you are concerned about marine propeller shaft, maybe you will be interested in the following products:



Name

Specification

Material

Drive Shaft

Dia.80~ Dia.1500mm

H11,H13,4140,4150,4340,EN9,EN19,EN24,EN31,1035,

1045,52100,C35E, C40E, C45E, etc

Eccentric Shaft

Dia.80~ Dia.1500mm

H11,H13,4140,4150,4340,EN9,EN19,EN24,EN31,1035,

1045,52100,C35E, C40E, C45E, etc

Reeler Shaft

Dia.80~ Dia.1500mm

H11,H13,4140,4150,4340,EN9,EN19,EN24,EN31,1035,

1045,52100,C35E, C40E, C45E, etc

Arbor Shaft

Dia.80~ Dia.1500mm

H11,H13,4140,4150,4340,EN9,EN19,EN24,EN31,1035,

1045,52100,C35E, C40E, C45E, etc

Generator Shaft

Dia.80~ Dia.1500mm

H11,H13,4140,4150,4340,EN9,EN19,EN24,EN31,1035,

1045,52100,C35E, C40E, C45E, etc

Elongator Shaft

Dia.80~ Dia.1500mm

H11,H13,4140,4150,4340,EN9,EN19,EN24,EN31,1035,

1045,52100,C35E, C40E, C45E, etc

Main Shaft

Dia.80~ Dia.1500mm

H11,H13,4140,4150,4340,EN9,EN19,EN24,EN31,1035,

1045,52100,C35E, C40E, C45E, etc








3500x6500mm Marine Sling Type Floating Pneumatic Rubber with lightweight.
