Product Details:
Payment & Shipping Terms:
|
Type: | Wedged Clip | Size: | Optional |
---|

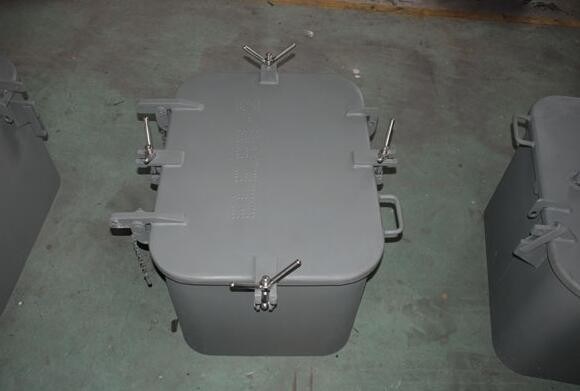

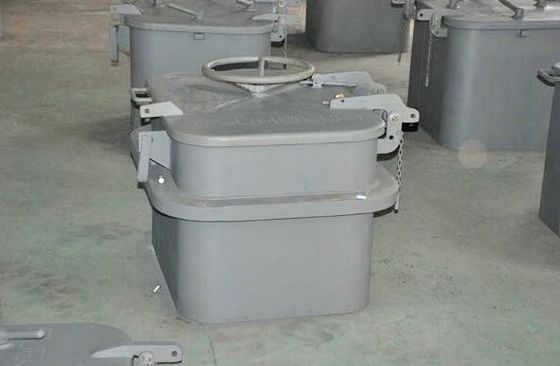

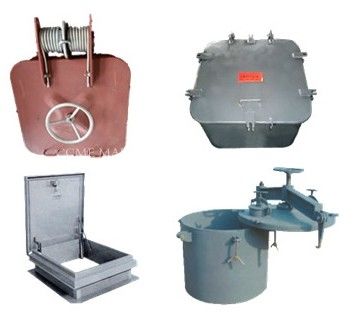

Marine Ship Boat Deck Escape Steel/Aluminum Small Size Waterproof Hatch Cover is used for small size hatch cover of various ships, to meet ISO 5778-1979
Nominal size L*B |
Clear size of opening L1*B1*R | Cover dimension L2*B2 | Cover plate thickness t | Coaming | Wing type nut cleat | Weight Kg | ||
to thickness | H Height | Diameter | Quantity | |||||
450*630 | 420*600*100 | 508*688 | 4 | 4.6 | 100 150 200 250 450 600 | M16 | 4 | 28.7 |
512*692 | 6 | 6.8 | 35.4 | |||||
516*696 | 8 | 8.11 | 42.0 | |||||
530*530 | 500*500*100 | 588*588 | 4 | 4.6 | 28.5 | |||
592*592 | 6 | 6.8 | 35.1 | |||||
596*596 | 8 | 8.11 | 41.7 | |||||
630*630 | 600*600*100 | 688*688 | 4 | 4.6 | M20 | 33.5 | ||
692*692 | 6 | 6.8 | 42.4 | |||||
696*696 | 8 | 8.11 | 51.2 | |||||
630*830 | 600*800*100 | 688*888 | 4 | 4.6 | 39.7 | |||
692*892 | 6 | 6.8 | 51.2 | |||||
696*896 | 8 | 8.11 | 62.3 | |||||
830*830 | 800*800*100 | 888*888 | 4 | 4.6 | 6 | 51.2 | ||
892*892 | 6 | 6.8 | 65.3 | |||||
896*896 | 8 | 8.11 | 79.4 | |||||
830*1230 | 800*1200*100 | 888*1288 | 4 | 4.6 | 8 | 71.4 | ||
892*1292 | 6 | 6.8 | 91.5 |
