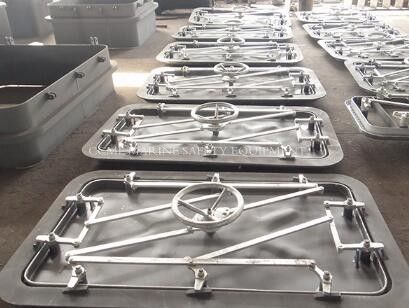

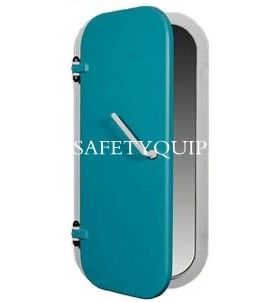

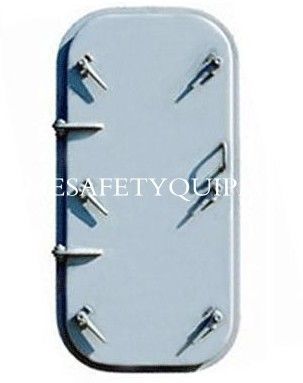

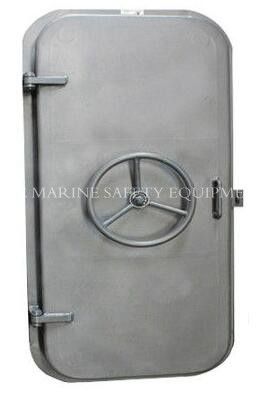

Quick-Opening-Closing Watertight Steel Door/Marine Watertight Door
we are a leading supplier of marine outfitting equipment, such as marine steel doors, marine aluminum door, marine windows, marine hatch cover, marine pilot rope ladder, embarkation rope ladder, gangway ladder etc.
This product applies to aluminum door on casting walls of military and merchant ships, also applies to others
| Code of standard |
Size of doorway H*W*R |
Size of door (H1*W1*R1) |
Hole size of casting wall (H2*W2*R2) |
Thickness of door sheet |
Weight (kg) |
| 1050 | 1000*500*100 | 1049*549*124.5 | 1100*600*150 | 6 | 92.3 |
| 1050*551*125.5 | 8 | 103.8 | |||
| 1260 | 1200*600*100 | 1249*649*124.5 | 1300*700*150 | 6 | 113.4 |
| 1251*651*125.5 | 8 | 129.0 | |||
| 1460 | 1400*600*100 | 1449*649*124.5 | 1500*700*150 | 6 | 128.6 |
| 1451*651*125.5 | 8 | 146.7 | |||
| 1475 | 1400*750*100 | 1449*799*124.5 | 1500*850*150 | 6 | 144.4 |
| 1451*951*125.5 | 8 | 165.9 | |||
| 1490 | 1400*900*100 | 1449*949*124.5 | 1500*1000*150 | 6 | 160.1 |
| 1451*951*125.5 | 8 | 185.2 | |||
| 1660 | 1600*600*100 | 1649*649*124.5 | 1700*700*150 | 6 | 136.9 |
| 1651*801*125.5 | 8 | 154.8 | |||
| 1675 | 1600*750*100 | 1649*799*124.5 | 1700*850*150 | 6 | 161.4 |
| 1651*951*125.5 | 8 | 185.7 | |||
| 1690 | 1600*900*100 | 1649*949*124.5 | 1700*1000*150 | 6 | 178.0 |
| 1651*951*125.5 | 8 | 206.4 |
