Product Details:
Payment & Shipping Terms:
|
| Material Of Floor: | Ceramic Tile/glass Fiber/PVC/mosaic | Standard: | IMO Standard And ISO Standard |
|---|---|---|---|
| Frame Surface: | Finishing: Polished | Dimension: | According To The Customer Requirements |
| Type: | HL--A/B/C/D |

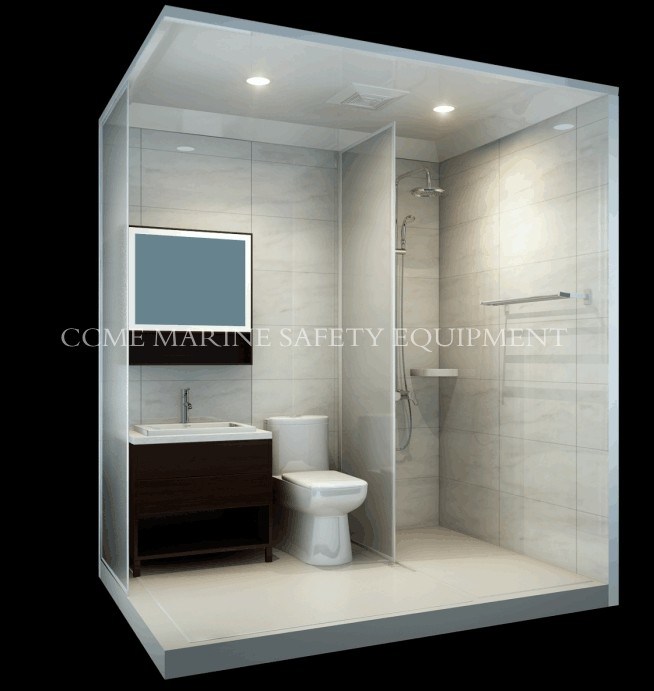

The product specification :
Length of sanitary unit: 2000mm to 2600mm
Width of sanitary unit: 1600mm
Height of sanitary unit: 2100mm or 2200mm
Material of floor: ceramic tile, quartz sand, glass fiber, PVC, or mosaic
List of basic equipment and hardware :
| Name | QUT | Description | |
| 1 | Underpan/ Floor | 1 | 3mm steelplate covered witn quarry tile 73*73*6 |
| 2 | wall | 1 | PVC laminated stell plate ,rock wool 30mm,galv stell |
| 3 | Ceiling | 1 | PVC laminated stell plate ,rock wool 30mm,galv stell |
| 4 | Door leaf | 1 | PVC laminated stell plate ,baked enamel stell plate |
| 5 | Door frame | 1&2 | baked enamel stell plate |
| 6 | Inspection hatch | 1&2 | the same to wall |
| 7 | Lock | 1 | Stainless stell unmanned lock |
| 8 | Closestool | 1 | Vitreous china |
| 9 | Type-S trap | 1 | Chrome-plating brass |
| 10 | Wash basin | 1 | Vitreous china |
| 11 | Wash basin mixer | 1 | Chrome-plating brass |
| 12 | Shower and hose | 1 | Sprinkler,hose |
| 13 | Temperature | 1 | Chrome-plating brass |
| 14 | Cold water pipes | 1 | Φ15*1.5 Copper pipe |
| 15 | Hot water pipes | 1 | Φ15*1.5 Copper pipe |
| 16 | Toilet cabinet | 1 | Baked enamel stell plate |
| 17 | Curtain rail | 1 | Plastic aluminium |
| 18 | Curtain | 1 | Curtain |
| 19 | Grab rail | 2 | Chrome-plating brass |
| 20 | Hat&coat hook | 2 | Chrome-plating brass |
| 21 | Towel bar | 1 | Chrome-plating brass |
| 22 | Soap dish | 2 | Chrome-plating brass |
| 23 | Mirror front lamp | 1 | Water proof |
| 24 | Door holding rod | 1 | Chrome-plating brass |
| 25 | Scupper | 2 | Stainless steel |
| 26 | Cable junction box | 1 | Type JXF-4 |
| 27 | Buck tube | 1 | Φ48*5 |
| 28 | Sewage pipe | 1 | Φ104*5 |
| 29 | extraction ventilation | 1 | Φ100 |
| 30 | Marine cable | 1 | 2*1.5 |
| 31 | Clamp | 2 | Φ40-60 Stainless stell |
| 32 | Clamp | 2 | Φ80-120 Stainless stell |
| 33 | Stop valve | 1 | Chrome-plating brass |
| 34 | Paper holder | 1 | Stainless stell |
| 35 | Ball valve | 2 | Copper 1.6Mpa |
| 36 | Flush valve | 1 | Copper |
| 37 | Shower coaming | 1 | Stainless stell |
| Note: the cusomer may confirm the basic equipment and hadware of the marine sanitary unit according to the actual situation . | |||
