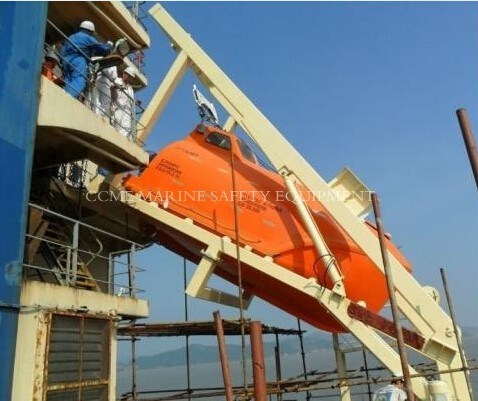

Free Fall Lifeboat is a model aboard from the sterm port designed and manufactured in accordance with the
latest specification of SOLAS and Internationl standards.
It slides down through the skideway(on ship or oil platform)freely to ensure quick and safe escape.
The passenger can be on board from the life gate and the driver inside can release it and let it slides into the sea safely.
Free-release system is specially designed and easy for operating and can provide global services.
CCME Free Fall Lifeboat has strengthened configration based on the totally enclosed lifeboat to bear
the strong impact when falls to the water and can escape from the vessel and offshore platform quickly.
It is especially suitable for the dangerous places such as oil drilling platforms.
Freefall Lifeboat Specification
Type |
Size |
Capacity |
Height |
Weight |
Full Weight |
49FC/FF |
4.9*2.18*0.7m |
16P |
3m |
2580/2870kg |
3900/4190kg |
60FC/FF |
6.0*2.32*0.86m |
20P |
3.1m |
3000/3300kg |
4650/4950kg |
675FC/FF |
6.75*2.75*0.76m |
32P |
3.1m |
3530/3840kg |
6170/6480kg |
85FC/FF |
8.5*2.95*3.2m |
50P |
3.2m |
4560/4900kg |
8685/9025kg |
109FC/FF |
10.9*2.95*3.3m |
67P |
3.3m |
6508/6919kg |
12036/12446kg |
145FC |
14.5*3.25*3.4m |
90P |
3.4m |
9135kg |
16560kg |
