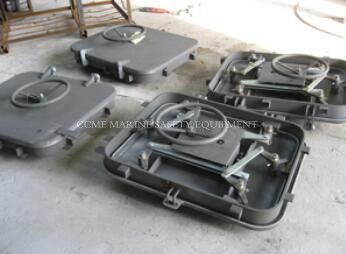

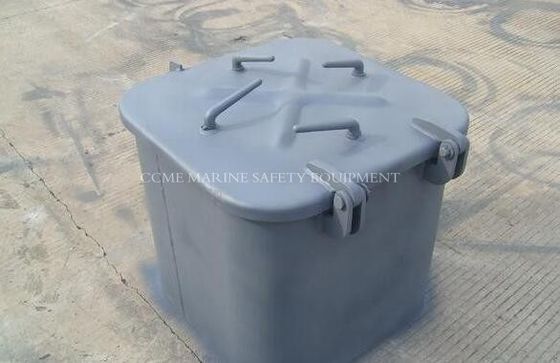

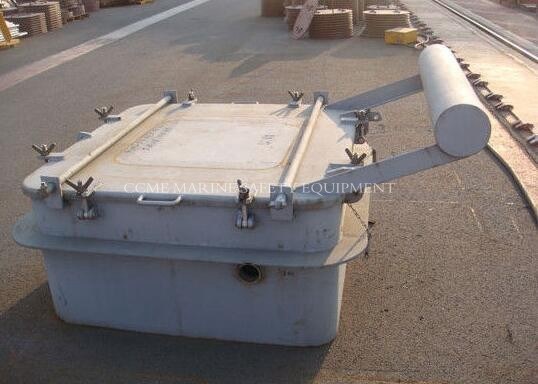

Marine Hatch Cover is used for hatch cover of various ships, to meet ISO5778-1979
Customized marine hatch cover.
Material: Available in marine quality steel, stainless steel and aluminim materials
type: raised/flush
quick-action/with dogs
handle: level type/wheel type
Design and built to meet clients request
Special application will be available
High-quality marine hatch cover
Watertight or Weathertight type marine hatch cover
With bolted clips operating mechanisms
High quality rubber gasket
Epoxy zinc rich primer coating or anode oxidation-treament
Design and manufacture special structures required by clients
Model | Clear Size of opening D |
A2 | B2 | H | H3 | L | t1 | t2 | Cleats quantity |
Weight kg |
A | 600 | - | - | 600 | 585~ 700 |
480 | 10 | 12 | 4 | 295 |
700 | 530 | 6 | 325 | |||||||
800 | 580 | 417 | ||||||||
1000 | 682 | 12 | 14 | 539 | ||||||
1200 | 782 | 630 | ||||||||
B | 700*1200 | 835 | 1285 | 600 | 585~ 700 |
556 | 12 | 14 | 6 | 543 |
750*1500 | 835 | 1585 | 556 | 593 | ||||||
850*1500 | 935 | 1585 | 606 | 614 |
