Types and specifications of door:

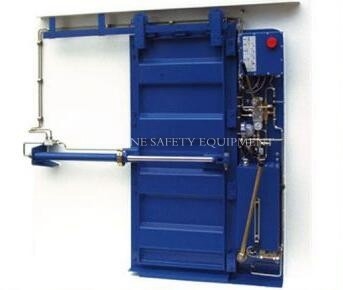

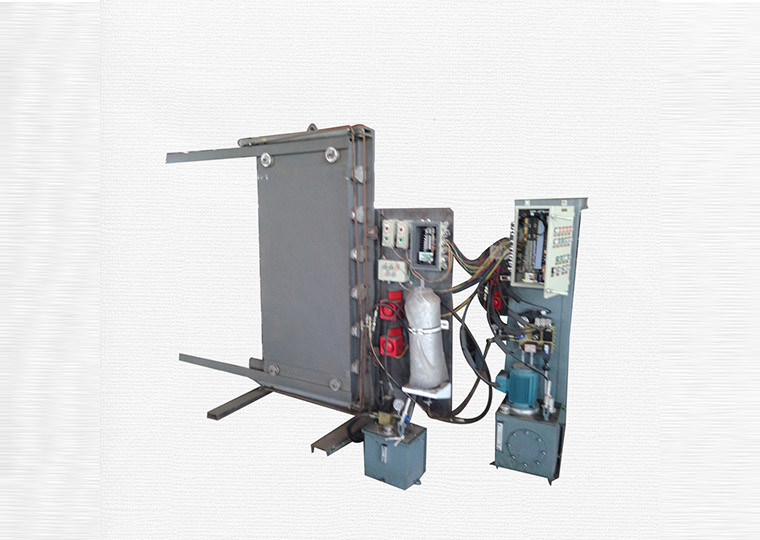

This product applies to watertight gateways of engine room below waterline of ships and meets the regulations for the classification and construction of sea-going steel ships in 1987.
This product can be hand operated on both sides of the engine room,it is designed for three-directional operation of hydraulic piping.
|

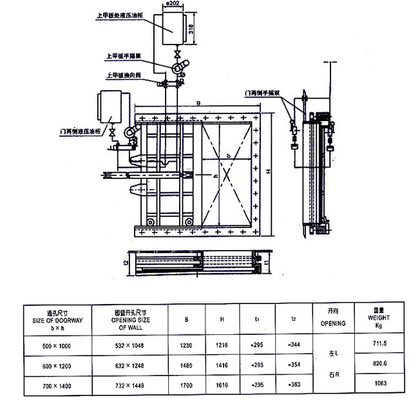

Size of doorway b*h |
Opening size Of bulkhead |
B |
H |
L1 |
L2 |
Weight (kg) |
|
500*1000 |
532*1048 |
1230 |
1216 |
~295 |
~334 |
711.5 |
|
600*1200 |
632*1248 |
1480 |
1416 |
~295 |
~354 |
820.6 |
|
700*1400 |
732*1448 |
1700 |
1616 |
~295 |
~363 |
1063.8 |
