Product Details:
Payment & Shipping Terms:
|
| Application: | Anchoring, Towing, Mooring | Chain Diameter: | 12mm To 82mm |
|---|---|---|---|
| Drum Qty: | Customized |

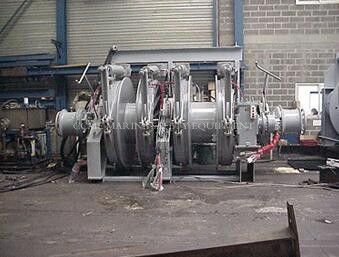

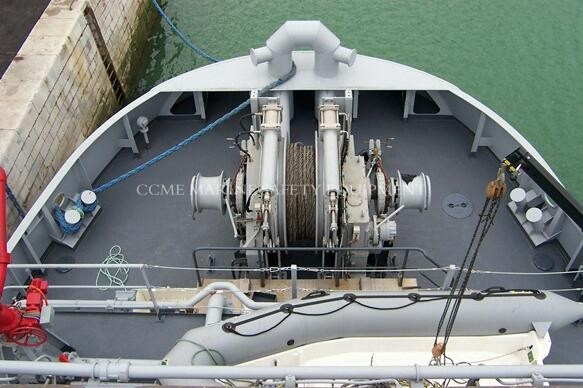

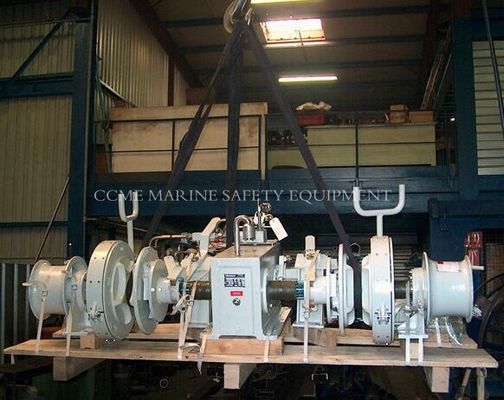

As the necessary tool for the lifting, pulling and anchoring on boats, the marine winch is a machine that restrains and manipulates the anchor chain and/or rope on a boat, allowing the anchor to be raised and lowered. Or mooring the boat, towing heavy object or storing wire ropes. It mainly includes anchor winch, towing winch, mooring winch, capstan in hand type, electric type, hydraulic type or diesel engine type. And all our marine winches have passed BV,CCS,DNV,RMRS,RINA . Normally load capacity:0.5t-500t and wire rope capacity:10m-5000m, we can offer different kinds of marine winches according to clients’ different demand.
Marine winch category:
Anchor winch,Towing winch,Mooring winch,Capstan,Anchoring and mooring winch,Cabling winch for your reference.All kinds of marine winch can be customized design according to each client's reuqirements from all over the world.Marin winch include:electric/hydraulic/diesel anchor winch,towing winch,mooring winch,capstan winch,anchor and mooring winch,anchor boat winch,anchor windlass,etc for our customer choose.
| Model | Chain Drum | Rotation drum | Motor power | Overall Dimensions(mm) | ||||
| Chain dia.(mm) | Load (KN) | Speed (m/min) | Load (KN) | speed (m/min) | Rope Size (mmxm) | KW | AxBxCxDxE | |
| SJ54 | 54 | 123.93 | 9 | 80 | 15 | 70x200 | 55 | 5335x2770x905x820x3480 |
| SJ56 | 56 | 133.38 | 9 | 80 | 15 | 70x200 | 55 | 5335x2770x905x820x3480 |
| SJ58 | 58 | 142.97 | 9 | 80 | 15 | 70x200 | 55 | 5380x2880x905x820x3500 |
| SJ60 | 60 | 153 | 9 | 80 | 15 | 70x200 | 55 | 5380x2880x905x820x3500 |
| SJ66 | 66 | 185.13 | 9 | 100 | 15 | 80x220 | 75 | 6590x3110x1130x950x3710 |
| SJ68 | 68 | 196.52 | 9 | 100 | 15 | 80x220 | 75 | 6590x3110x1130x950x3710 |
| SJ70 | 70 | 208.52 | 9 | 125 | 15 | 80x220 | 75 | 6910x3300x1200x1050x3980 |
| SJ73 | 73 | 226.48 | 9 | 125 | 15 | 80x220 | 75 | 6910x3300x1200x1050x3980 |
| SJ76 | 76 | 245.48 | 9 | 125 | 15 | 80x220 | 90 | 6910x3480x1200x1050x4100 |
| SJ78 | 78 | 258.57 | 9 | 125 | 15 | 80x220 | 90 | 6910x3480x1200x1050x4100 |
