| Capacity: | 3 To 15T | Wire Speed: | 20m/min |
|---|

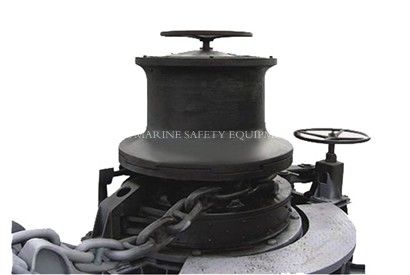

Anchor capstan:
1.Vertically mounted.
2.Cast steel wraping head.
3. 3 to 15T pull@1st layer.
4.Max. speed 20m/min.
Features of Anchor Capstan Winch:
1. This capstan can adopt electric or hydraulic drive.
2. Configurations are vertically mounted.
3. Warping head of the capstan uses cast steel.
4. Rated pull of the 1st layer can reach from 3MT to 15MT.
5. Max wire speed of this capstan winch is 20m/min.
6. Local control is available for customers.
| Model | Pull(MT) | Speed(M/MIN) | Warping Head Dia. mm | Power (Approx.) |
| CMDCA-3T/330 | 3 | 10 | 330 | 7.5 |
| 15 | 11 | |||
| CMDCA-5T/330 | 5 | 10 | 330 | 11 |
| 15 | 15 | |||
| CMDCA-5T/380 | 10 | 380 | 11 | |
| 15 | 15 | |||
| CMDCA-8T/380 | 8 | 10 | 380 | 18.5 |
| 15 | 30 | |||
| CMDCA-8T/450 | 10 | 450 | 18.5 | |
| 15 | 30 | |||
| CMDCA-10T/450 | 10 | 10 | 450 | 22 |
| 15 | 30 | |||
| CMDCA-10T/510 | 10 | 510 | 22 | |
| 15 | 30 |
