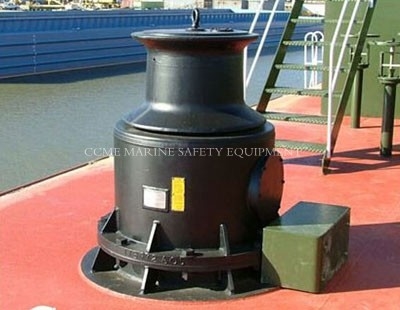

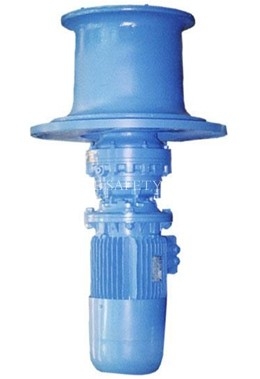

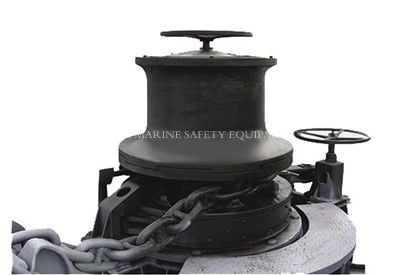

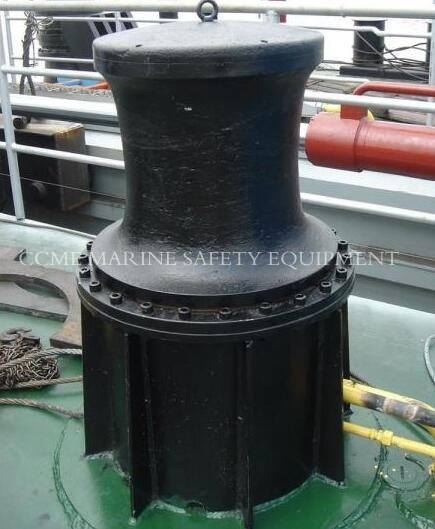

Marine 75kn Marine Electric Vertical Anchor Capstan

Large Image : Marine 75kn Marine Electric Vertical Anchor Capstan

Product Details:

Place of Origin:	Jiangsu
Brand Name:	CCME
Certification:	ABS EC GL CCS BV
Model Number:	CCM6

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	wooden case
Delivery Time:	15 days
Payment Terms:	T/T L/C
Supply Ability:	100 PER month

Contact Now

Detailed Product Description

1)Chain Dia 20mm
2)Working Load 75kN
3)Anchoring speed: minimum 18m/min
4)Marine Electric Vertical Anchor Capstan

Specification	Φ20mm Marine Electric Vertical Anchor Capstan for a boat
configuration	Vertical
Driven type	Driven by Electric motor or Manual drive. Both of two way can't work at the same time.

Dia of chain	20mm
Working load	75 KN
Over load pull
Anchoring speed	18m/min MINIMUM
Brake holding load

dia of steel wire rope	Φ20mm
Wire rope load	75KN
wire speed	18m/min MINIMUM

Electric motor	YZ250S-4/8/16-H
Power	14.5kw/380V/50Hz/3P
