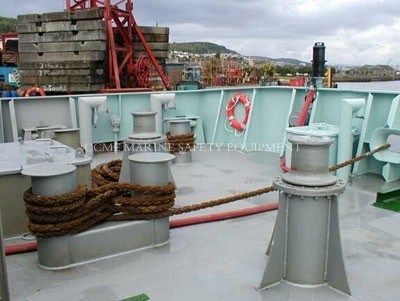

Specifications of Capstan:
Features of Capstan Winch:
1. This capstan can adopt electric or hydraulic drive.
2. Configurations are vertically mounted.
3. Warping head of the capstan uses cast steel.
4. Rated pull of the 1st layer can reach from 3MT to 15MT.
5. Max wire speed of this capstan winch is 20m/min.
6. Local control is available for customers.
| Model | Pull(MT) | Speed(M/MIN) | Warping Head Dia. mm | Power (Approx.) |
| CA-3T/330 | 3 | 10 | 330 | 7.5 |
| 15 | 11 | |||
| CA-5T/330 | 5 | 10 | 330 | 11 |
| 15 | 15 | |||
| CA-5T/380 | 10 | 380 | 11 | |
| 15 | 15 | |||
| CA-8T/380 | 8 | 10 | 380 | 18.5 |
| 15 | 30 | |||
| CA-8T/450 | 10 | 450 | 18.5 | |
| 15 | 30 | |||
| CA-10T/450 | 10 | 10 | 450 | 22 |
| 15 | 30 | |||
| DCA-10T/510 | 10 | 510 | 22 | |
| 15 | 30 |
