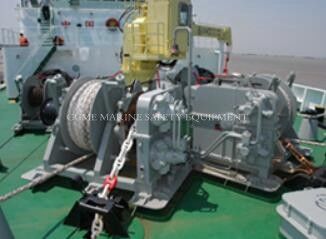

Marine electric or diesel hydraulic Anchor windlass, anchor capstan with specification of dia. 12.5 to 80 mm. mooring capstan of 5-150 kN, winches (5-1000kN) widely used in ocean ship/vessel, and the products have obtained the CCS, ABS, BV, GL, DNV, LR, NK, KR etc certificates
Name | Chain | Working | Supporting | Working | Warping | Warping | Motor |
Dia. | Load | Load | Speed | Load | Speed | Power | |
Φ14/16/17.5 | 14/16/17.5 | 8.3/10.9/13.0 | 51/67/80 | ≥12 | 8 | 10 | 4.3/1.7 |
Φ19/20.5/22 | 19/20.5/22 | 15.3/17.9/20.6 | 95/110/126 | ≥12 | 10 | 10 | 8.5/3.5 |
Φ24/26 | 24/26 | 24.5/28.7 | 149/175 | ≥9 | 20 | 8.5 | 8.5/3.5 |
Φ26/28 | 26/28 | 28.7/33.3 | 175/202 | ≥9 | 20 | 8.5 | 11/11/7.5 |
Φ28/30/32 | 28/30/32 | 33.3/38.3/43.5 | 202/231/261 | ≥9 | 30 | 8.5 | 16/16/11 |
Φ32/34/36 | 32/34/36 | 43.5/49.1/55.1 | 261/294/329 | ≥9 | 30 | 8.5 | 16/16/11 |
Φ32/34/36/38 | 32/34/36/38 | 43.5/49.1/55.1/61.4 | 261/294/329/365 | ≥9 | 30 | 8.5 | 22/22/16 |
Φ38/40/42 | 38/40/42 | 61.4/68.0/75.0 | 365/402/442 | ≥9 | 50 | 8.5 | 22/22/16 |
Φ42/44/46 | 42/44/46 | 75.0/82.3/89.9 | 442/483/526 | ≥9 | 30 | 12 | 22/22/16 |
Φ44/46/48 | 44/46/48 | 82.3/89.9/97.9 | 483/526/570 | ≥9 | 30 | 12 | 30/30/22 |
Φ50/52/54 | 50/52/54 | 106.3/114.9/123.9 | 617/664/713 | ≥9 | 50 | 12 | 30/30/22 |
Φ56/58/60 | 56/58/60 | 133.3/143.0/153 | 764/816/870 | ≥9 | 50 | 14 | 45/45/30 |
