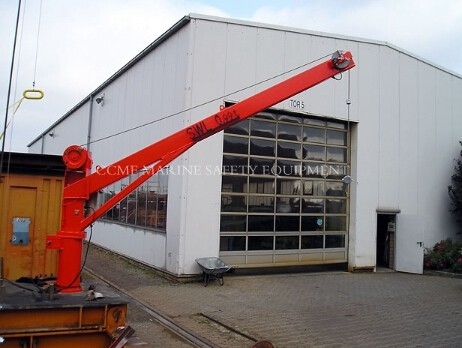

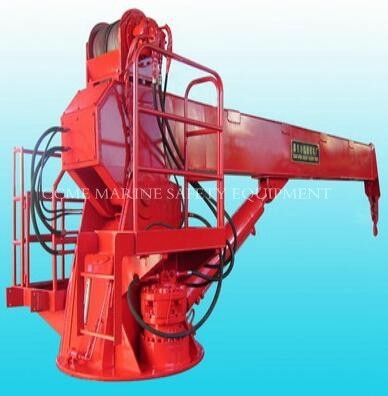

The electro-hydraulic marine crane is a freestanding deck mounted crane consisting of a pedestal, a slewing ring, a crane housing with integrated power pack unit, a fixed jib and a winch. The crane are suitable for stores handling and also for combined handling of a life raft and/or rescue boat and stores.
ll hydraulic parts of deck crane are used origin import parts(import from UAS &Europe), drive by hydraulic system, with advantage of Smooth operation, Speed level can be adjusted, 360 degree slew, Compact structure, Combined with hydraulic control and manual control, easy operation, safety and reliability etc.
| SWL | Max Weight(T) | 70 | 53 | 43 | 37 | 31 | 30 |
| Max Length(M) | 8 | 12 | 16 | 20 | 24 | 25 | |
| Sea state | 0/harbour | ||||||
| Max Heel/trim | 5° /2° | ||||||
| SWL | Max Weight(T) | 45.5 | 34 | 27.5 | 24 | 20 | 19.5 |
| Max Length(M) | 8 | 12 | 16 | 20 | 24 | 25 | |
| Sea state | 2-3 | ||||||
| Beaufort No. | 4 | ||||||
| Significant wave height(m) | 1.6 | ||||||
| Max Heel/trim | 3° /6° | ||||||
| Model No. | GHEM1100 | Unit | |||||
| Hoisting speed main winch(0-35t) |
0-20 | m/s | |||||
| Hoisting speed main winch (35-70t) |
0-10 | m/s | |||||
| Hook Travel | 50 | m | |||||
| Working Radius | 4.8-25 | m | |||||
| Luffing angle | 0-77° | degree | |||||
| Slew angol | 360 unlimited angle | degree | |||||
| Design temperature | 40/-10 | degree | |||||
| Power Consuption | 160 | kw | |||||
| Design according | RINA/API-2C | ||||||
