Product Details:
Payment & Shipping Terms:
|
| Material: | Natural Rubber | Reaction Force: | 64KN~3015KN |
|---|---|---|---|
| Part: | Tyre-chain Net,rope Net | Application: | Anti-collision Device |
| Warranty Time: | 3 Years |
1.Absorb more energy,less reverse impact on the ships and enhance port ability
2. Not being bent out of shape under pressure
3.More flexible ,easy installation
4.Good air tightness,safety and reliability
5.Produce according to ISO17357:2002 completely
6.Pass ISO ,CCS,DNV,ABS and so on
7.Many different sizes and shape available
8.Durable, practical and economical
9. Stringent,special and advanced manufacturing technique
10. The full set of manufacturing equipments experimenting and testing equipments

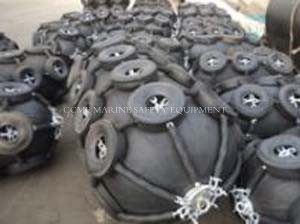

Parameter 1.5m *3m Yokohama Pneumatic Rubber Fender
| Size | Initial internal pressure | Guaranteed energy absorption GEA(kJ) |
Reaction force at GEA deflection R((kN)) |
| D×L(m) | (Kpa) | Minimum value at deflection 60±5% |
Tolerance ±10% |
| 0.5×1.0 | 50 | 6 | 64 |
| 0.6×1.0 | 50 | 8 | 74 |
| 0.7×1.5 | 50 | 17 | 137 |
| 1.0×1.5 | 50 | 32 | 182 |
| 1.0×2.0 | 50 | 45 | 257 |
| 1.2×2.0 | 50 | 63 | 297 |
| 1.35×2.5 | 50 | 102 | 427 |
| 1.5×3.0 | 50 | 153 | 597 |
| 1.7×3.0 | 50 | 191 | 639 |
| 2.0×3.5 | 50 | 308 | 875 |
| 2.5×4.0 | 50 | 663 | 1381 |
| 2.5×5.5 | 50 | 943 | 2019 |
| 3.0×5.0 | 50 | 1210 | 2104 |
| 3.0×6.0 | 50 | 1485 | 2583 |
| 3.3×4.5 | 50 | 1175 | 1884 |
| 3.3×6.0 | 50 | 1675 | 2783 |
| 3.3×6.5 | 50 | 1814 | 3015 |
| 3.3×10.6 | 50 | 3067 | 5257 |
| 4.5×9.0 | 50 | 4752 | 5747 |
| 4.5×12.0 | 50 | 6473 | 7984 |
