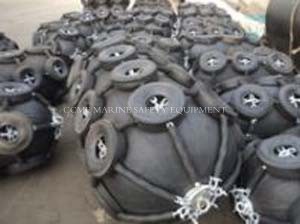

Anti-Collision Marine Pneumatic Rubber Fender

All Products

Marine mooring equipment (227)

Marine deck equipment (79)

Marine outfitting equipment (77)

Marine electric equipment (36)

Marine propulsion system (47)

Marine rescue boat & life boat (48)

Marine pollution prevention equipment (31)

Marine life saving equipment (90)

Marine pumps (23)

Fire fighting system (21)

Fire fighting equipment (37)

Marine power system (7)

Ungrouped (26)

Best Products

Floating pontoon cubes PE Floating platform for boat and jet ski

Cooperation with Century Marine is satisfying. I am always assured with things dealt appropriately by them in advance.

—— Md. Ferozkhang

Thanks for your services, which is as good as the business relationship kept between us.

—— LIJU RO

Contact Now

Detailed Product Description

1.Absorb more energy,less reverse impact on the ships and enhance port ability

2. Not being bent out of shape under pressure

3.More flexible ,easy installation

4.Good air tightness,safety and reliability

5.Produce according to ISO17357:2002 completely

6.Pass ISO ,CCS,DNV,ABS and so on

7.Many different sizes and shape available

8.Durable, practical and economical

9. Stringent,special and advanced manufacturing technique

10. The full set of manufacturing equipments experimenting and testing equipments

Parameter 1.5m *3m Yokohama Pneumatic Rubber Fender

Size	Initial internal pressure	Guaranteed energy absorption GEA(kJ)	Reaction force at GEA deflection R((kN))
D×L(m)	(Kpa)	Minimum value at deflection 60±5%	Tolerance ±10%
0.5×1.0	50	6	64
0.6×1.0	50	8	74
0.7×1.5	50	17	137
1.0×1.5	50	32	182
1.0×2.0	50	45	257
1.2×2.0	50	63	297
1.35×2.5	50	102	427
1.5×3.0	50	153	597
1.7×3.0	50	191	639
2.0×3.5	50	308	875
2.5×4.0	50	663	1381
2.5×5.5	50	943	2019
3.0×5.0	50	1210	2104
3.0×6.0	50	1485	2583
3.3×4.5	50	1175	1884
3.3×6.0	50	1675	2783
3.3×6.5	50	1814	3015
3.3×10.6	50	3067	5257
4.5×9.0	50	4752	5747
4.5×12.0	50	6473	7984
