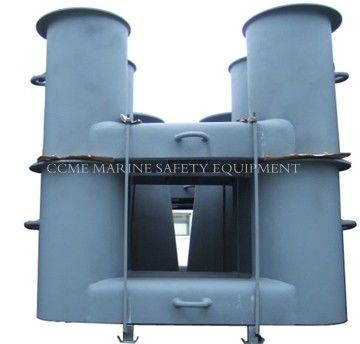

Marine Double Bitts Casting Steel Marine Bollard

China Marine Double Bitts Casting Steel Marine Bollard supplier
Marine Double Bitts Casting Steel Marine Bollard supplier Marine Double Bitts Casting Steel Marine Bollard supplier Marine Double Bitts Casting Steel Marine Bollard supplier Marine Double Bitts Casting Steel Marine Bollard supplier

Large Image :  Marine Double Bitts Casting Steel Marine Bollard

Product Details:

Place of Origin: Jiangsu
Brand Name: CCME
Certification: LR,CCS,ABS,BV,DNV,RINA,KR
Model Number: CCM4

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable

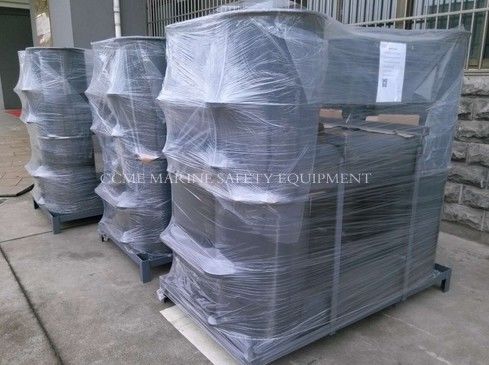

Packaging Details: standard packaging
Delivery Time: 10 days
Payment Terms: T/T or L/C
Supply Ability: 1000 Pc per month
Contact Now
Detailed Product Description

1.material:Cast Steel,Cast Iron,Ductile Iron

 2.Bollard Capacity: 10~200 Tonnes

 3.Certificate: ABS, CCS, etc

 4.This bollard is custom made to meet your special application.





Product No. Type F Dimension(mm) Weight(kg)
A B C D E F G H
EDBVI-001 100 5 600 210 310 114 350 145 100 65 36
EDBVI-002 150 10 800 260 385 168 500 205 100 90 59
EDBVI-003 200 15.5 950 330 460 219 600 255 100 115 98
EDBVI-004 230 17 1030 350 470 244 680 300 100 120 113
EDBVI-005 250 20 1150 370 520 273 750 320 110 130 135
EDBVI-006 300 28 1350 420 597 324 900 370 110 155 210
EDBVI-007 350 32 1500 470 657 356 1000 405 110 175 328
EDBVI-008 400 40 1650 540 740 406 1100 450 125 200 418
EDBVI-009 450 54 1800 600 790 457 1200 510 125 215 499
EDBVI-010 500 60 1950 650 840 508 1300 560 125 230 586
EDBVI-011 550 68 2100 700 890 559 1400 610 125 250 684
EDBVI-012 600 80 2270 770 945 612 1500 660 125 270 900
