| Material: | Steel Or Carbon Steel |
|---|

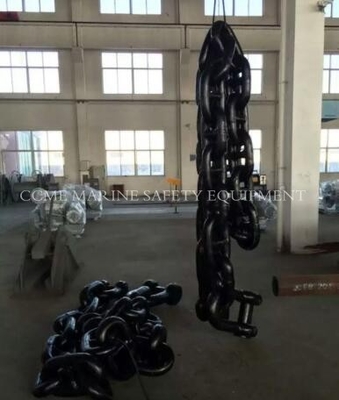

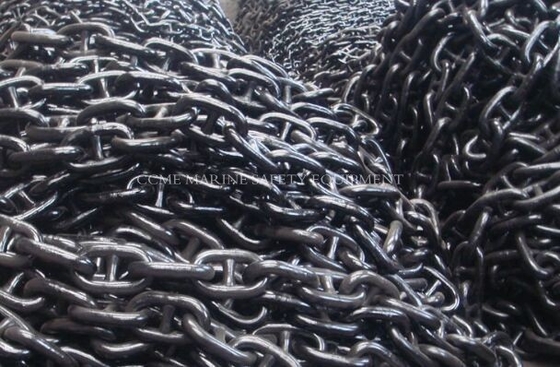

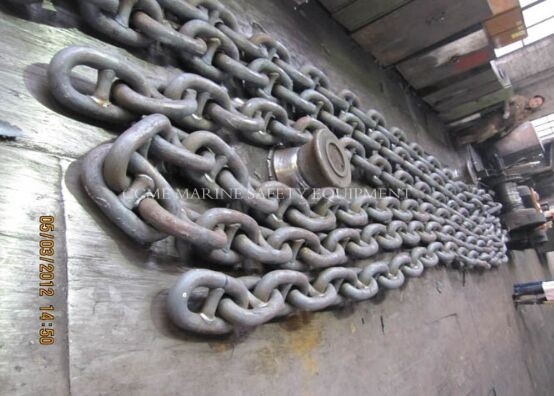

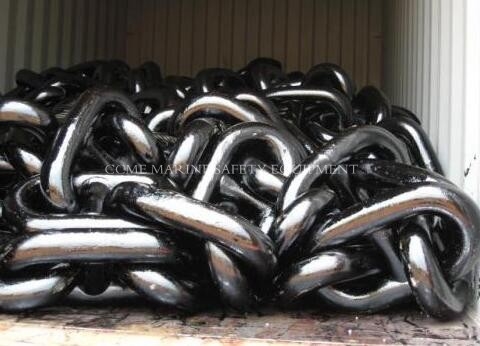

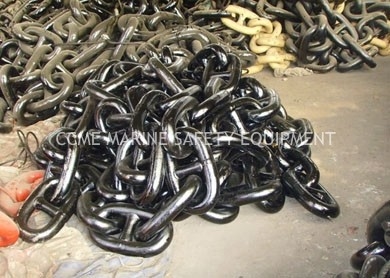

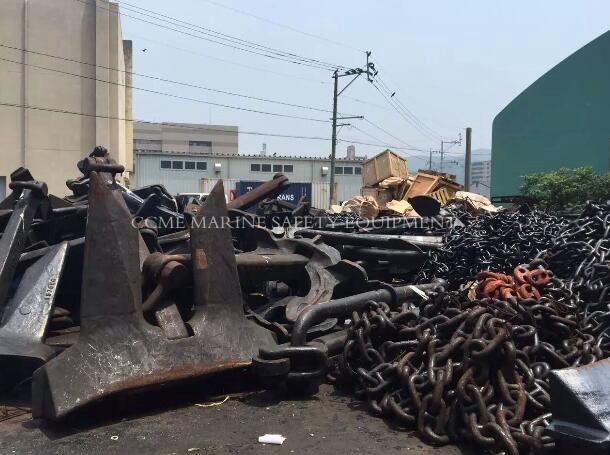

Marine Ship Anchor Chain:
1. Standard length is 27.5m per piece,we also can produce and cut anchor chains according to your requirement .
2. Material: alloy steel, generally including CM390, SM490, CM690, or according to your requirement
3. Grade :U2&U3 ship anchor chains
4. Surface treatment: self color, black painted, zinc galvanized, hot dip galvanized or according to customer's requirement.
5. The tension breaking load conforms to National Standard.

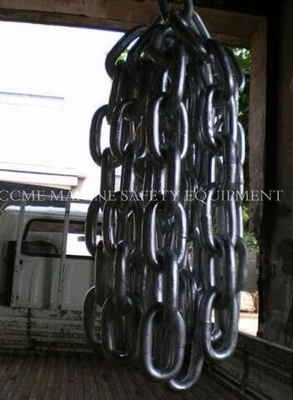

6. Studless anchor chains. Specification: 12.5-70mm, mainly adapt to vessels, fish net tenesmus, mine, municipal engineer, new established garden decoration
7. Production process: (1) material cutting (2) heating (3) curving (4) welding (5) thorn cutting (6) pressing (7) heating treatment (8) Blind bolts (9) polishing (10) painting or galvanized
Technical parameter of Ship Anchor Chain:
|
Ship anchor chain Size(6×3.6D) Proof Load Weight |
||||||||||
|
Diameter |
Size |
U1 ship anchor chain |
U2 ship anchor chain |
U3 ship anchor chain |
Weight |
|||||
|
Outside length |
Outside width |
Proof load |
Breaking load |
Proof load |
Breaking load |
Proof load |
Breaking load |
27.5M |
||
|
Inch |
mm |
mm |
mm |
KN |
KN |
KN |
KN |
KN |
KN |
KG |
|
1/2 |
12.5 |
75 |
45 |
46 |
66 |
66 |
92 |
92 |
132 |
98.00 |
|
9/16 |
14 |
84 |
50.4 |
58 |
82 |
82 |
116 |
116 |
165 |
119.00 |
|
5/8 |
16 |
96 |
57.6 |
76 |
107 |
107 |
150 |
150 |
216 |
156.00 |
|
11/16 |
17.5 |
105 |
63 |
89 |
127 |
127 |
179 |
179 |
256 |
186.00 |
|
3/4 |
19 |
114 |
68.4 |
105 |
150 |
150 |
211 |
211 |
301 |
230.00 |
|
13/16 |
20.5 |
123 |
73.8 |
123 |
175 |
175 |
244 |
244 |
349 |
260.00 |
|
7/8 |
22 |
132 |
79.2 |
140 |
200 |
200 |
280 |
280 |
401 |
300.00 |
|
15/16 |
24 |
144 |
86.4 |
167 |
237 |
237 |
332 |
332 |
476 |
370.00 |
|
1-1/16 |
26 |
156 |
93.6 |
194 |
278 |
278 |
389 |
389 |
556 |
431.00 |
|
1-1/8 |
28 |
168 |
100.8 |
225 |
321 |
321 |
449 |
449 |
642 |
496.00 |
|
1-3/16 |
30 |
180 |
108 |
257 |
368 |
368 |
514 |
514 |
735 |
564.00 |
|
1-1/4 |
32 |
192 |
115.2 |
291 |
417 |
417 |
583 |
583 |
833 |
635.00 |
|
1-5/16 |
34 |
204 |
122.4 |
328 |
468 |
468 |
655 |
655 |
937 |
712.00 |
|
1-7/16 |
36 |
216 |
129.6 |
366 |
523 |
523 |
732 |
732 |
1050 |
800.00 |
|
1-1/2 |
38 |
228 |
136.8 |
406 |
581 |
581 |
812 |
812 |
1160 |
887.00 |
|
1-9/16 |
40 |
240 |
144 |
448 |
640 |
640 |
896 |
896 |
1280 |
1032.00 |
|
1-5/8 |
42 |
252 |
151.2 |
492 |
703 |
703 |
981 |
981 |
1400 |
1084.00 |
|
1-3/4 |
44 |
264 |
158.4 |
538 |
769 |
769 |
1080 |
1080 |
1540 |
1197.00 |
|
1-13/16 |
46 |
276 |
165.6 |
585 |
837 |
837 |
1170 |
1170 |
1680 |
1310.00 |
|
1-7/8 |
48 |
288 |
172.8 |
635 |
908 |
908 |
1270 |
1270 |
1810 |
1438.00 |
|
2 |
50 |
300 |
180 |
686 |
981 |
981 |
1370 |
1370 |
1960 |
1546.00 |
|
2-1/16 |
52 |
312 |
187.2 |
739 |
1060 |
1060 |
1480 |
1480 |
2110 |
1661.00 |
|
2-1/8 |
54 |
324 |
194.4 |
794 |
1140 |
1140 |
1590 |
1590 |
2270 |
1791.00 |
|
2-3/16 |
56 |
336 |
201.6 |
851 |
1220 |
1220 |
1710 |
1710 |
2430 |
1926.00 |
|
2-5/16 |
58 |
348 |
208.8 |
909 |
1290 |
1290 |
1810 |
1810 |
2600 |
2086.00 |
|
2-3/8 |
60 |
360 |
216 |
969 |
1380 |
1380 |
1940 |
1940 |
2770 |
2249.00 |
|
2-7/16 |
62 |
372 |
223.2 |
1030 |
1470 |
1470 |
2060 |
2060 |
2940 |
2361.00 |
|
2-1/2 |
64 |
384 |
230.4 |
1100 |
1560 |
1560 |
2190 |
2190 |
3130 |
2516.00 |
|
2-9/16 |
66 |
396 |
237.6 |
1160 |
1660 |
1660 |
2310 |
2310 |
3300 |
2676.00 |
|
2-11/16 |
68 |
408 |
244.8 |
1230 |
1750 |
1750 |
2450 |
2450 |
3500 |
2885.00 |
|
2-3/4 |
70 |
420 |
252 |
1290 |
1840 |
1840 |
2580 |
2580 |
3690 |
3010 |
