Removable Marine Bollard Marine Fairlead Marine Mooring Equipment

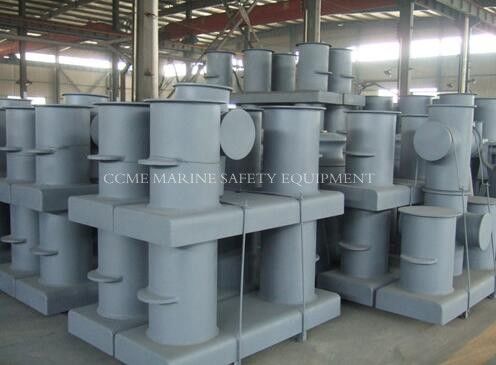

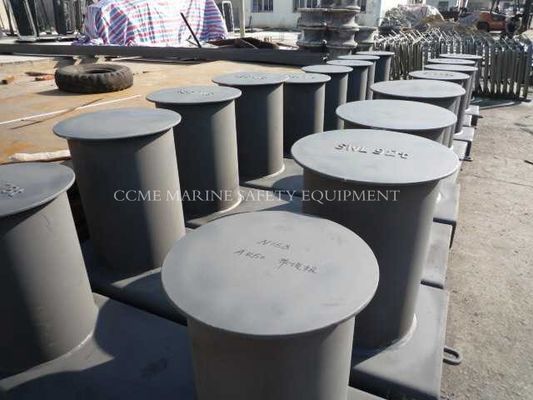

Large Image : Removable Marine Bollard Marine Fairlead Marine Mooring Equipment

Product Details:

Place of Origin:	Jiangsu
Brand Name:	CCME
Certification:	LR,CCS,ABS,BV,DNV
Model Number:	CCM5

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	standard packaging
Delivery Time:	10 days
Payment Terms:	T/T or L/C
Supply Ability:	1000 Pc per month

Contact Now

Detailed Product Description

Specifications

material:steel
standard:type A
size:According to customer requirements

bollard used for port mooring of the vessels
Mooring system is to ship by the wharf, float, dock or adjacent marine equipment.
Includes cable, bollards, chock, mooring volume cars and mooring machinery. White brown cable commonly used cable, wire rope, synthetic fiber cable.Bollards used to bind the cable.
Our access to BV,CCS Certificate Classification Society and many other countries, the company passed ISO9000 quality management system certification, product sales all over the world.

Nominal Dia.	a1	a2	b1	c	d2	e	h	k	l1	l2	t1	Weight (kg)
125	4	5	20	80	170	165	250	15	315	455	6	25.9
160	4	5	24	90	200	195	300	15	400	568	6	37.2
200	5	6	32	100	260	250	400	15	500	719	6	75.2
250	5	6	40	125	330	315	500	15	630	903	10	124
315	6	8	48	150	390	375	600	20	800	1124	10	230
400	8	9	56	175	480	435	700	20	1000	1406	10	356
500	10	9	72	200	600	515	830	25	1250	1758	12	732
630	10	9	88	225	720	615	1000	25	1570	2180	16	1084
710	10	9	96	250	830	675	1100	25	1750	2461	16	1532
