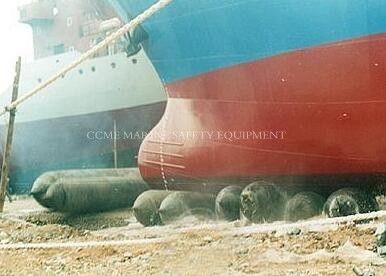

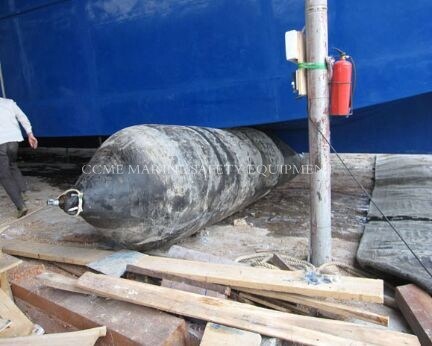

Marine Airbag For Ship Launching And Lifting

China Marine Airbag For Ship Launching And Lifting supplier
Marine Airbag For Ship Launching And Lifting supplier Marine Airbag For Ship Launching And Lifting supplier Marine Airbag For Ship Launching And Lifting supplier Marine Airbag For Ship Launching And Lifting supplier

Large Image :  Marine Airbag For Ship Launching And Lifting

Product Details:

Place of Origin: Jiangshu
Brand Name: CCME
Certification: ABS EC BV GL KR RINA DNV etc
Model Number: CCM3

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: standard package
Delivery Time: 15 days
Payment Terms: T/T L/C
Supply Ability: 10000 per month
Detailed Product Description
Diameter: 0.8-6m Length: 5-25m
Material: Natural Rubber Application: Ship Luanching And Landing, Salvage, Lifting
Warranty: 3 Years

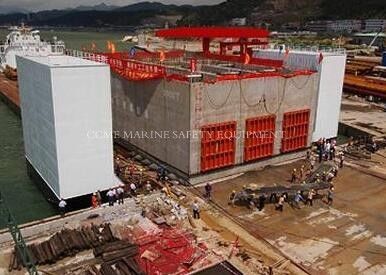

1.Hoist and handling airbags:
They can be widely used for handling the various large prefabricated reinforced-concrete products( such as caisson, box culvert, bridge), oil drilling equipment and integrated building, etc.

2. Floating and filling airbags:
The corresponding buoyancy can be offered on the client’s request during wreck salvage and underwater installation operation. Filling and floating gasbags can be flexibly combined for wreck salvage, pontoon bridge installation, dock, above water transmission pipeline, etc. in many ways such as cabin occupation , etc.
3. Water supply and drain airbag for ship:
It is widely used for water supply and drain engineering for large-size, medium-size and small –size ships, with labour-saving, time-saving and physical force -saving.
4. Mandrel airbag:

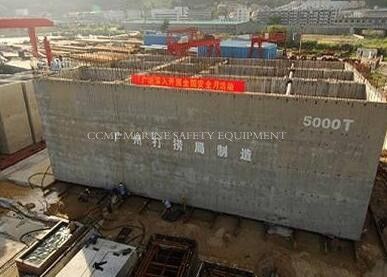

It can substitute for the wooden or steel mandrel used for pouring hollow large reinforced concrete structure.
5. Container airbag:
It can be used as the gas or liquid storage and transport container.



Specifications Air-bags for Marine Use
Category
Airbag Diameter D
(m)
Operating Pressure
(Mpa)
Test Pressure
(Mpa)
Bearing Capacity Each Meter of Airbag(kn/m)
Operating Depth
0.5D
Operating Depth
0.4D
Operating Depth
0.3D
Operating Depth
0.2D

Medium Pressure Airbag

0.3 0.340 0.408 80 96 112 128
0.6 0.167 0.200 79 94 110 126
0.8 0.125 0.150 79 94 110 126
1 0.100 0.120 79 94 110 126
1.2 0.084 0.101 79 95 111 127
1.5 0.067 0.080 79 95 111 126
1.8 0.056 0.067 79 95 111 127
2 0.050 0.060 79 94 110 126
2.5 0.040 0.048 79 94 110 126
3 0.033 0.040 78 93 109 124

High Pressure Airbag

0.6 0.334 0.401 157 189 220 252
0.8 0.250 0.300 157 188 220 251
1 0.200 0.240 157 188 220 251
1.2 0.167 0.200 157 189 220 252
1.5 0.133 0.160 157 188 219 251
1.8 0.111 0.133 157 188 220 251
2 0.100 0.120 157 188 220 251
2.5 0.080 0.096 157 188 220 251
3 0.067 0.080 158 189 220 253

Ultra High Pressure Airbag
Class I

0.6 0.500 0.650 236 283 330
0.8 0.375 0.488 236 283 330
1 0.300 0.390 236 283 330
1.2 0.250 0.325 236 283 330
1.5 0.200 0.260 236 283 330
1.8 0.167 0.217 236 283 331
2 0.150 0.195 236 283 330
2.5 0.120 0.156 236 283 330
Ultra High Pressure Airbag
Class II
0.6 1.000 1.300 471 565 660
0.8 0.750 0.975 471 565 660
1 0.600 0.780 471 565 660
1.2 0.500 0.650 471 565 660
1.5 0.400 0.520 471 565 660
1.8 0.333 0.433 471 565 659
2 0.300 0.390 471 565 660
2.5 0.240 0.312 471 565 660




3500x6500mm Marine Sling Type Floating Pneumatic Rubber with lightweight.
