Size: | Per To You Needs |
---|

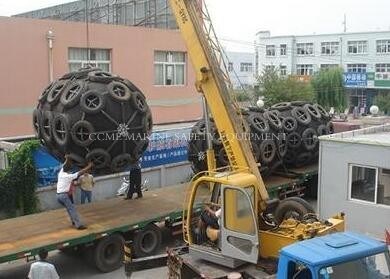

Marine fender also called pneumatic fender, rubber fender, yokohama fender, made by rubber & multi layer of rubber-dipped tyre fabric, is a leading anti-collision device for marine application in the world today. Marine fenders have become an ideal ship protection medium against collision among ship-to-ship (STS), ship to quay (STQ) and ship-to-berthing (STB), they arewidely used for large tankers, vessels, docks, harbor wharfs and ocean platforms.
1. Using compressed air as daming medium, the rubber fender can transform
flexibly under pressure, with large contact area, small reaction and absorb
large amount of energy
2. When berthing, the ship is almost at a certain angle, the pneumatic rubber
fender can realize contact in a certain angle by bringing full play to its performance.
3. Floating on the water surface, even the ship fluctuate and sway resulting from ebb
and waves, the Pneumatic rubber fender bears less friction, which would be no
harm to coating surface of ship and rubber fender.
4. Simple installation, siply installed on the wharf and anchor mast
Technical Parameter
No. |
Size (Diameter x Length) |
Initial pressure |
Energy absorption |
Reaction force |
|
mm x mm |
MPa |
KJ |
KN |
1 |
500 x 1000 |
0.05 |
6 |
64 |
2 |
600 x 1000 |
0.05 |
8 |
74 |
3 |
700 x 1500 |
0.05 |
17 |
137 |
4 |
1000 x 1500 |
0.05 |
32 |
182 |
5 |
1000 x 2000 |
0.05 |
45 |
257 |
6 |
1200 x 2000 |
0.05 |
63 |
297 |
7 |
1350 x 2500 |
0.05 |
102 |
427 |
8 |
1500 x 3000 |
0.05 |
153 |
579 |
9 |
1700 x 3000 |
0.05 |
191 |
639 |
10 |
2000 x 3500 |
0.05 |
308 |
875 |
11 |
2500 x 4000 |
0.05 |
663 |
1381 |
12 |
2500 x 5000 |
0.05 |
857 |
1835 |
13 |
2500 x 5500 |
0.05 |
943 |
2019 |
14 |
3000 x 5000 |
0.05 |
1050 |
2000 |
15 |
3000 x 6000 |
0.05 |
1312 |
2488 |
16 |
3300 x 4500 |
0.05 |
1175 |
1884 |
17 |
4500 x 9000 |
0.05 |
4752 |
5747 |
18 |
4500 x 12000 |
0.05 |
6473 |
7984 |
