| Working Pressure: | 0.12Mpa | Size: | Per To Your Requests |
|---|---|---|---|
| Application: | Boat/ship Safty |
1 Out rubber layer
The outer rubber layer protects the cord layers and the inner rubber layers from abrasion and other external forces. This compaound has sufficient tensile and tear strength to withstand any weather condition and hard uasage.
2 Inner layers
The inner layers seals the pressurized air inside the fenders.
3 Synthetic-tire-cord layers for reinforcement
4 Beading Ring
A steel ring is placed at one end(or both two ends) of the fenderand holds the end of core layers.

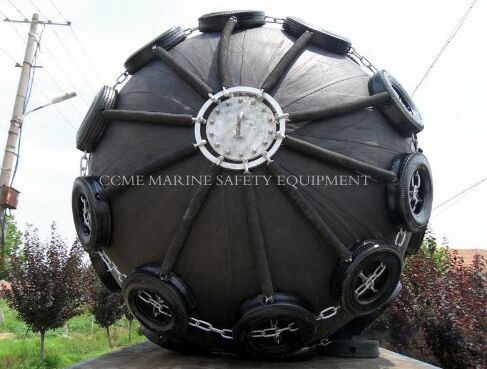

5 Flange
A steel flange is mounted on the fender, to which an air valve or safety valve can be adapted.
|
Specification D×Lm |
Initial pneumatic pressure 0.05Mpa |
Initial pneumatic pressure 0.08Mpa |
||||
|
Sphere Weight(KG) |
R(KN) |
GEA(KJ) |
Sphere Weight(KG) |
R(KN) |
GEA(KJ) |
|
|
0.5×1.0 |
25 |
64 |
6 |
25 |
85 |
8 |
|
0.6×1.0 |
32 |
74 |
8 |
32 |
98 |
11 |
|
0.7×1.5 |
50 |
137 |
17 |
50 |
180 |
24 |
|
1.0×1.5 |
80 |
182 |
32 |
80 |
239 |
45 |
|
1.0×2.0 |
100 |
257 |
45 |
125 |
338 |
63 |
|
1.2×2.0 |
120 |
297 |
63 |
165 |
390 |
88 |
|
1.35×2.5 |
165 |
427 |
102 |
226 |
561 |
142 |
|
1.5×3.0 |
315 |
579 |
153 |
370 |
761 |
214 |
|
1.7×3.0 |
405 |
639 |
191 |
436 |
840 |
287 |
|
2.0×3.5 |
590 |
875 |
308 |
632 |
1150 |
430 |
|
2.5×4.0 |
1050 |
1381 |
663 |
1110 |
1815 |
925 |
|
2.5×5.5 |
1333 |
2019 |
943 |
1410 |
2653 |
1317 |
|
3.0×5.0 |
1880 |
2000 |
1050 |
2155 |
2709 |
1571 |
|
3.0×6.0 |
2160 |
2488 |
1312 |
2470 |
3292 |
1888 |
|
3.3×4.5 |
2020 |
1884 |
1175 |
2300 |
2476 |
1640 |
|
3.3×6.0 |
2300 |
2783 |
1675 |
2600 |
3652 |
2338 |
|
3.3×6.5 |
2700 |
3015 |
1814 |
3080 |
3961 |
2532 |
|
3.3×10.6 |
4403 |
5257 |
3067 |
5020 |
6907 |
4281 |
|
4.5×9.0 |
6554 |
5747 |
4752 |
7470 |
7551 |
6633 |
|
4.5×12.0 |
8739 |
7984 |
6473 |
9960 |
10490 |
9037 |
|
Note: The weight is the fender weight (excluding protective sleeve), with weight error of±10% and counterforce error pf±10% |
||||||
