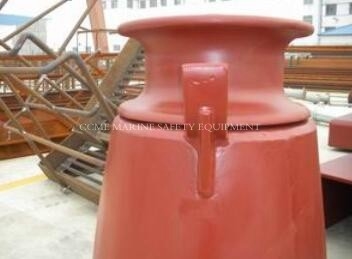

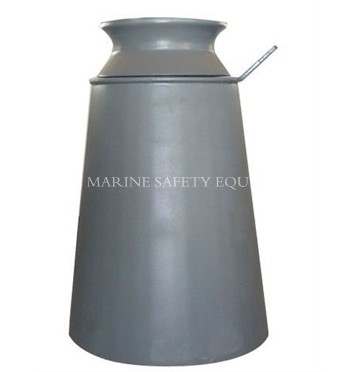

Marine Mooring Equipment Single Roller Fairlead with Cleat
1. steel material
2. with single roller
3. good quality
4. accord. to DIN81906
|
Dia(mm) |
Rope Dia(mm) |
Dimensions(mm) |
Mass (kg) |
Rated Towing Pull(KN) |
Breaking Strength of Wire(KN) |
|||||||
|
A |
B |
C |
D |
E |
F |
G |
H |
|||||
|
160 |
12 |
210 |
60 |
195 |
160 |
50 |
5 |
42 |
80 |
10 |
10 |
90 |
|
200 |
16 |
265 |
70 |
245 |
200 |
50 |
5 |
56 |
102 |
19 |
20 |
100 |
|
250 |
20 |
330 |
85 |
300 |
250 |
50 |
6 |
71 |
126 |
36 |
30 |
220 |
|
320 |
24 |
420 |
106 |
390 |
320 |
50 |
7 |
88 |
160 |
76 |
50 |
350 |
|
400 |
32 |
530 |
125 |
490 |
400 |
60 |
8 |
113 |
208 |
146 |
80 |
500 |
|
450 |
40 |
610 |
160 |
560 |
450 |
85 |
8 |
139 |
256 |
238 |
120 |
800 |
|
500 |
48 |
640 |
190 |
620 |
500 |
100 |
8 |
144 |
228 |
328 |
200 |
1150 |
|
560 |
52 |
780 |
230 |
740 |
560 |
150 |
8 |
183 |
348 |
551 |
320 |
1750 |
