| Working Pressure: | 0.12Mpa | Size: | Per To Your Requests |
|---|---|---|---|
| Application: | Boat/ship Safty | R (KN): | 2019KN |
| Material: | Natural Rubber+durable Dipped Tyre |

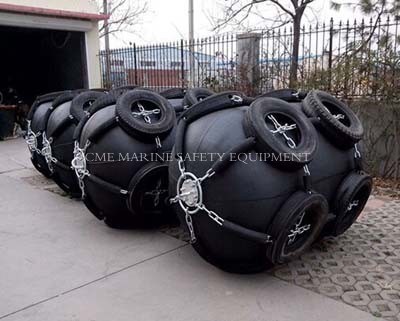

CCS certificate marine pneumatic rubber fenders
Ease of handling and good buoyancy
Low surface pressure with low reaction and High Energy Absorption Rate
These fenders offer excellent energy absorption characteristic and do have a linear load deflection characteristic. They are very easy to install, remove and
Constructure
1)Outer rubber layer
Rubber layer that covers the outside of the fender to protect the cord layers and the inner liner rubber from abrasion and other external forces.
2)Inner rubber layer
liner of a rubber membrane that seals the pressurized air inside the fender.(In general,we will make some inner rubber container in advance and inflate them.few days later,we will test the pressure again.The one which it's pressure did not change is good one.We will put it into store and when clients order we can use it directly.This can ensure every fender we send to client is airtight one)
3. Flange opening
which is mounted on the fender to which an air valve can be adapted.(our flange are all Embedded welding, very stable)
4. Initial internal pressure
Air pressure at which an uncompressed fender operates.
yokohama pneumatic fender
2.There are two types Pneumatic rubber marine fender :
1)Sling-type fender:fender which is designed to be used without a protection net.
|
Size |
Initial Internal Pressure 0.05MPa |
Weight ±10% |
Initial Internal Pressure 0.08MPa |
Weight ±10% |
||
|
D*L(mm) |
R(KN) |
GEA(KJ) |
Kg |
R(KN) |
GEA(KJ) |
Kg |
|
500*1000 |
64 |
6 |
25 |
83 |
8 |
25 |
|
600*1000 |
74 |
8 |
32 |
96 |
11 |
32 |
|
700*1500 |
137 |
17 |
50 |
178 |
24 |
50 |
|
1000*1500 |
182 |
32 |
80 |
235 |
44 |
80 |
|
1000*2000 |
257 |
45 |
100 |
335 |
63 |
125 |
|
1200*2000 |
297 |
63 |
120 |
386 |
86 |
165 |
|
1350*2500 |
427 |
102 |
165 |
554 |
140 |
226 |
|
1500*3000 |
597 |
153 |
315 |
751 |
211 |
370 |
|
1700*3000 |
639 |
191 |
405 |
830 |
263 |
436 |
|
2000*3500 |
875 |
308 |
590 |
1138 |
424 |
632 |
|
2500*4000 |
1381 |
663 |
1050 |
1815 |
925 |
1110 |
|
2500*5500 |
2019 |
943 |
1333 |
2653 |
1317 |
1410 |
|
3000*5000 |
2104 |
1210 |
1880 |
2709 |
1571 |
2155 |
|
3000*6000 |
2583 |
1485 |
2160 |
3292 |
1888 |
2470 |
|
3300*4500 |
1884 |
1175 |
2020 |
2476 |
1640 |
2300 |
|
3300*6500 |
3015 |
1814 |
2700 |
3961 |
2532 |
3080 |
