Dock Cylindrical Tugboat Marine Rubber Fender

China Dock Cylindrical Tugboat Marine Rubber Fender supplier

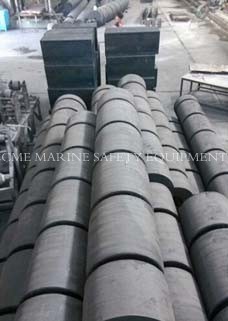

Large Image :  Dock Cylindrical Tugboat Marine Rubber Fender

Product Details:

Place of Origin: Jiangsu
Brand Name: CCME
Certification: LR,CCS,ABS,BV,DNV
Model Number: CCM8

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: standard packaging
Delivery Time: 10 days
Payment Terms: T/T or L/C
Supply Ability: 1000 Pc per month
Detailed Product Description



Tugboat Rubber Fenders are often used on the bow and stern of tugs as primary pushing fenders. Their circular shape makes them ideal when working with large bow flares such as container ships, but they are equally suited to pushing flat sided vessels. Available in diameters of up to 80cm and in very long lengths, Tugboat Rubber Fenders are fitted to the tug hull with a longitudinal chain running down the fender bore. On larger fenders, these chains are supplemented by circumferential restraints – either sleeved chains or webbing straps – which sit in special grooves moulded into the fender body at intervals along its length. The ends of the Tugboat Rubber Fenders can be tapered to help fair them into the hull.



Type of Tug Boat rubber Fender

Inner Dia
(d)

Outer Dia
(D)

Length of Tug Boat Fender
(L)

Note

D
D'
Φ200×Φ100×L
100
200

500-20000
Straight
Type

Φ300×Φ150×L
150
300

Φ400×Φ200×L
200
400

Φ500×Φ220×L
220
500

Φ500×Φ250×L
250
500

Φ600×Φ300×L
300
600

Φ700×Φ350×L
350
700

Φ750×Φ350×L
350
750

Φ800×Φ400×L
400
800

Φ400×Φ300×Φ200×L
200
400
300
Cone
Type

Φ500×Φ400×Φ250×L
250
500
400
Φ600×Φ450×Φ250×L
250
600
450
Φ700×Φ500×Φ300×L
300
700
500
Φ750×Φ450×Φ250×L
250
750
450
Φ760×Φ500×Φ300×L
300
760
500
Φ800×Φ600×Φ400×L
400
800
600
3500x6500mm Marine Sling Type Floating Pneumatic Rubber with lightweight.
