Ship Floating Dock Plastic Pontoon

China Ship Floating Dock Plastic Pontoon supplier
Ship Floating Dock Plastic Pontoon supplier Ship Floating Dock Plastic Pontoon supplier Ship Floating Dock Plastic Pontoon supplier Ship Floating Dock Plastic Pontoon supplier

Large Image :  Ship Floating Dock Plastic Pontoon

Product Details:

Place of Origin: Jiangshu
Brand Name: CCME
Certification: ABS EC BV GL KR etc
Model Number: CCM6

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: standard package
Delivery Time: 15 days
Payment Terms: T/T L/C
Supply Ability: 10000 per month
Contact Now
Detailed Product Description
Material: High-density Polythylene(HDPE) Size: Blueyelloworangerblack
Application: Pontoon Bridges,Marinas,jetty,Swimming Pool And So On Ear Max.Bearing: 1.8-2T


Connection Pin
Size:Dia. 185*48*245mm

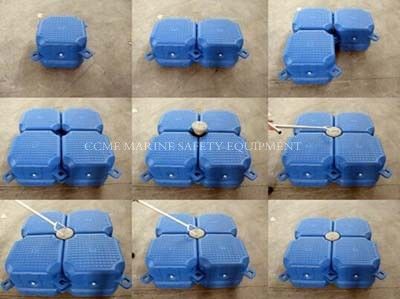

It is used to lock the pontoon lugs together. When the pin is pushed in and turned, a quarter turn locks the cube lugs together using two different locking systems. This ensures a superior locking.


Side Fixation with Nut
Size: Dia. 95*205mm
The bolt and nut are used around the outside edge of the modular system assembly. Where tow float edges meet, the two lugs are locked together by the nut and bolt side fixation.


Distance Disc
Size:Dia. 96*32mm, Dia. 96*16mm
Pontoons are equipped with 4 lugs, position at various heights. Due to the sapce created between them, the spacer will be used to fill this empty space. Sapcers are mainly used for the side fixation assemble.


Boat Cleat
Size: Dia. 76*250mm
Cleat used to anchor your boat to the dock.


1: Material: HDPE (high density polyethylene)
2: Floating Unit specifications: 50 * 50 * 40cm / Material thickness is 3-5CM
3: Weight: 7 kg or more,
4: Water capacity: 370 kg / square meter / 4 floating Units.
5: Affordable tension: 1.8 to 2 t. (Affordable tension for ears of Floating unit)
6: Resistance to general acid-base, solar UV radiation
7: Max. temperature: 190 °C, Min. temperature -50 ° C
8: Environmentally friendly materials does not produce toxic chemicals (such as dioxin, etc.)
9: Normal use (no particular thorn /cuts) can be durable for more than 15 years.
10: The buoy can always be disassembled, reassemble repeatedly to change the use of the platform, easy to assemble (with special tools for installation).
11 Excellent fixing system, and can be anti-7 to 9 wind force scales, and 7 to 8 wave height scales.

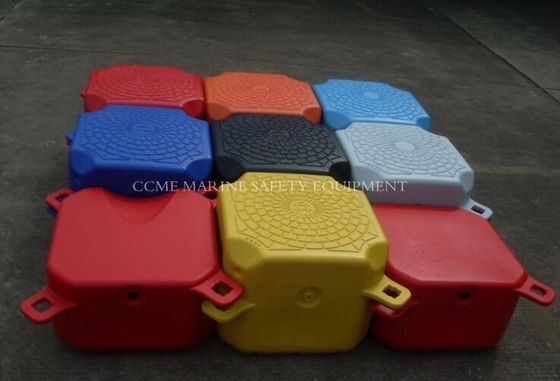

12. Colors can be customized, our general inventory stocks with white, blue.




3500x6500mm Marine Sling Type Floating Pneumatic Rubber with lightweight.
