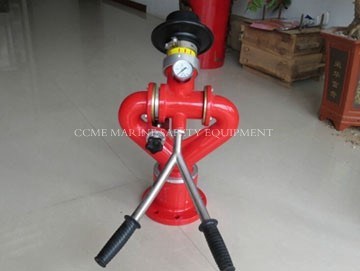

Water and Foam liquid spraying monitor
-Standard
Requirement of the international Code for Fire Safety System
-Application
1) Air-foam fire monitor is used to produce and spray foam to extinguish the long distance fires caused by class A.B and C liquids or spray water to extinguish the long distance fires caused by solid materials.
2) Type PP24C/PP32C marine fire monitors are not only suitable for petrochemical works, oil storage tank areas, airports, warehouse, ports and decks, but also suitable for the installation such as ships, fixed platform on the sea and fire vehicles.
3) Type PP24C/PP32C Fire Monitor has fire nozzle, the nozzle can spray foam and water both. Its control handle can make the fire monitor rotated horizontally and vertically.
-Technical Data
Type |
Service Pressure MPa |
Max Service Pressure MPa |
Spray Capacity L/S |
Spray Capacity L/S |
Range M |
Range M |
Mixed Liquids |
Water |
Foam |
Water |
|||
PP24C |
0.5-1.0 |
1.0 |
24 |
24 |
40 |
45 |
PP32C |
0.5-1.0 |
1.0 |
32 |
32 |
≥45 |
≥50 |
Horizontal Rotary(0) |
Max Angle of down(0) |
Max Angle of Up (0) |
Allowable Error of Discharge Capacity |
Foaming Times(at 20 0C) |
Foaming Times(at 20 0C) |
25% Discharge Time(min)(at 20 0C) |
≥±1800 |
≥±700 |
≤-60 0 |
±8% |
≥6 |
≥6 |
≥2.5 |
